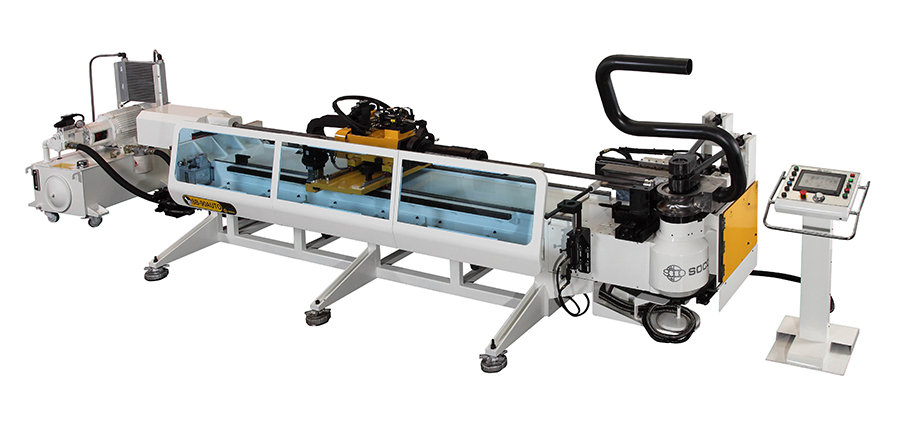

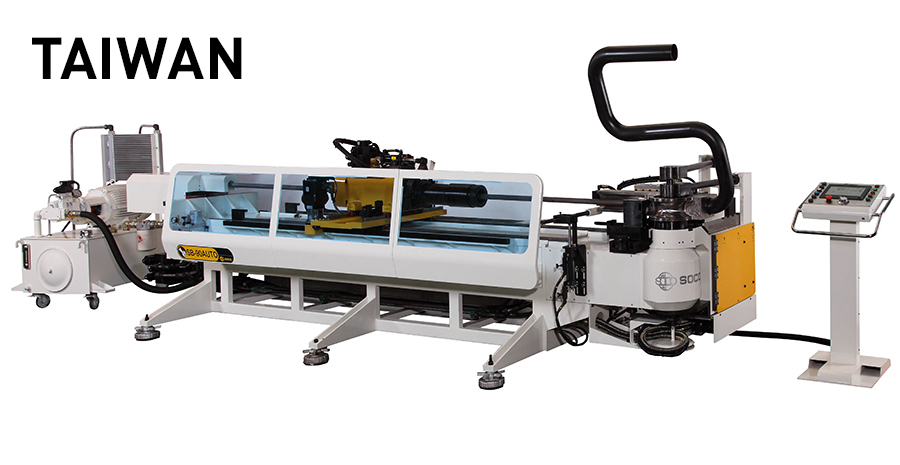

SOCO SB-90 AUTO pipe bender

Pipe and section bending machines - with mandrel

SOCO SB-90 AUTO pipe bender

429 261,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

SOCO SB-90 AUTO hydraulic pipe bender equipped with a PLC controller with a touch screen. Operation is simple and intuitive, and the bending accuracy is very high.

Quantity

SOCO SB-90 AUTO hydraulic pipe bender equipped with a PLC controller with a touch screen. Operation is simple and intuitive, and the bending accuracy is very high.

Main features of the device:

PLC controller with touch screen
Entering data in the YBC and XYZ system
Possibility to convert data from XYZ to YBC
The operator can choose from 8 different sequences of simultaneous axes movements
Possibility to save up to 88 file configurations
Possibility to program up to 15 bends in one program
The machine is equipped with one bending level
Y and B axes (travel, rotation) controlled by servomotors with the possibility of programming the speed of each axis and the C axis controlled hydraulically
The machine is equipped with die holders: supporting, clamping and smoothing
The machine has two feed functions: a positive feed function and a multiple feed function
Central lubrication system for moving components and automatic spindle lubrication system
The control panel is placed on a movable base, enabling the most favorable positioning for the operator

Standard equipment:

Standard stem mounting kit
Hydraulic pin retraction system
Automatic pin lubrication system
Hydraulic support matrix system
PLC controller with touch screen
SOCO software installed on the machine
Console
Instructions in English
CE Declaration of Conformity

Technical data	Unit	Value
Diameter of the bent pipe (steel)	[mm]	2.3 - 88.9
Diameter of the bent pipe (stainless steel)	[mm]	1.5 - 88.9
Single travel	[mm]	2350
Bending radius	[mm]	250
The length of the pin	[mm]	3800
Bending angle	[°]	190
Bending speed	[°/sec]	35
Feed speed	[mm/s]	600
Bending accuracy	[°]	+/- 0,2
The accuracy of the positioning movements	[°]	+/- 0,15
Accuracy of the feed	[°]	+/- 0,25
Main engine power	[kW]	15
Number of bends per pipe	[-]	15
Pipe rotation speed	[°/s]	120
Weight	[kg]	3000
