ECONOMIC FLAT BED CNC LATHE CKE 360
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

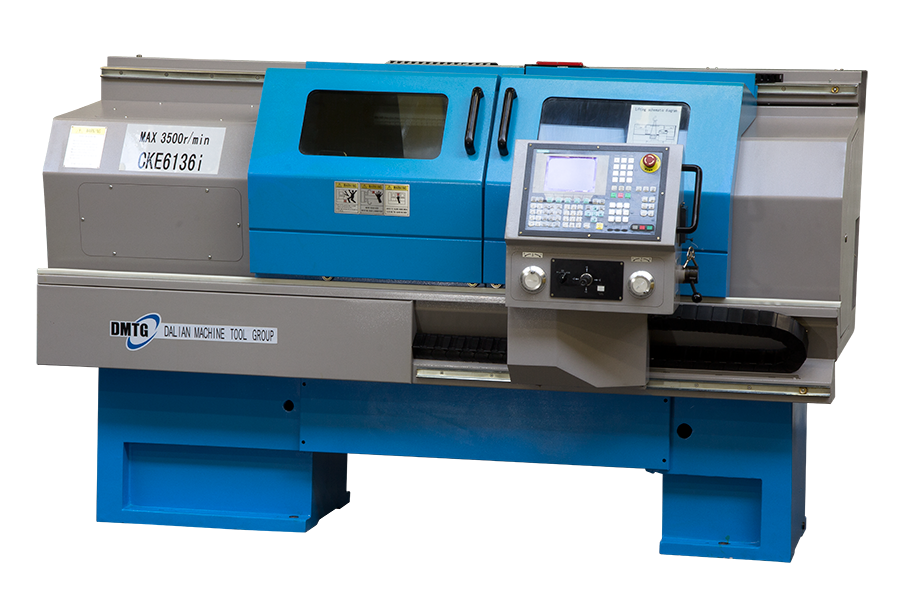

The CKE 360 CNC lathe is intended for the processing of external and internal surfaces. It has the option of turning cones, making spherical surfaces (thanks to circular interpolation), as well as cutting all kinds of threads (cylindrical, conical, face).
Quantity
Add to cart
CONDITION: UNUSED
YEAR OF PRODUCTION: 2018
SINUMERIK 808D
PRICE: 21 145,00 €
The CKE 360 CNC lathe is intended for the processing of external and internal surfaces. It has the option of turning cones, making spherical surfaces (thanks to circular interpolation), as well as cutting all kinds of threads (cylindrical, conical, face).
The lathe is controlled by a CNC control: FANUC or SINUMERIC. The device can be equipped with a spindle drive, which can use:
- shift wheels - three speed ranges
- inverter - smooth regulation in each of the three ranges
- servomotor - smooth, stepless regulation in the entire range
The machine is available with a 4-position electrically operated knife holder or with a 6-position head, and a manual or hydraulic lathe chuck and a tailstock.
The central lubrication system ensures proper operation of the ball screws and a long service life of the bed guides. The lathe is equipped with a brake at the end of the motor shaft and tight covers to protect the operator from chips and coolant.
Standard equipment:
- 3-jaw lathe chuck
- CNC control system: FANUC or SINUMERIC
- 4-position knife holder
- inverter
- 2 canines for spindle and tailstock
- reduction sleeve for the canine
- foundation bolts 6 pcs.
- leveling wedges 6 pcs.
- Toolkit
- User manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- 6 position head
- servo motor
- 4 jaw lathe chuck
- hydraulic lathe chuck
- hydraulically controlled tailstock
- steady rest 30-300 mm
- follow rest
- rotating canine
- barfeeder
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 360 |
| Turning diameter over slide | [mm] | 180 |
| Workpiece length | [mm] | 1000 |
| X-axis travel range | [mm] | 205 |
| Z axis travel range | [mm] | 620 |
| Rotation speed | [rpm/min] | 4000 |
| Spindle tip | [-] | A2-6/D6 |
| Spindle flight | [mm] | 52 |
| Extend the tailstock quill | [mm] | 130 |
| Tailstock sleeve diameter | [mm] | 63 |
| Tailstock taper | [-] | MT4 |
| Main spindle motor | [kW] | 6,5 |
| External dimensions L x W x H | [mm] | 2300x1480x1520 |
| Net weight | [kg] | 1800 |
