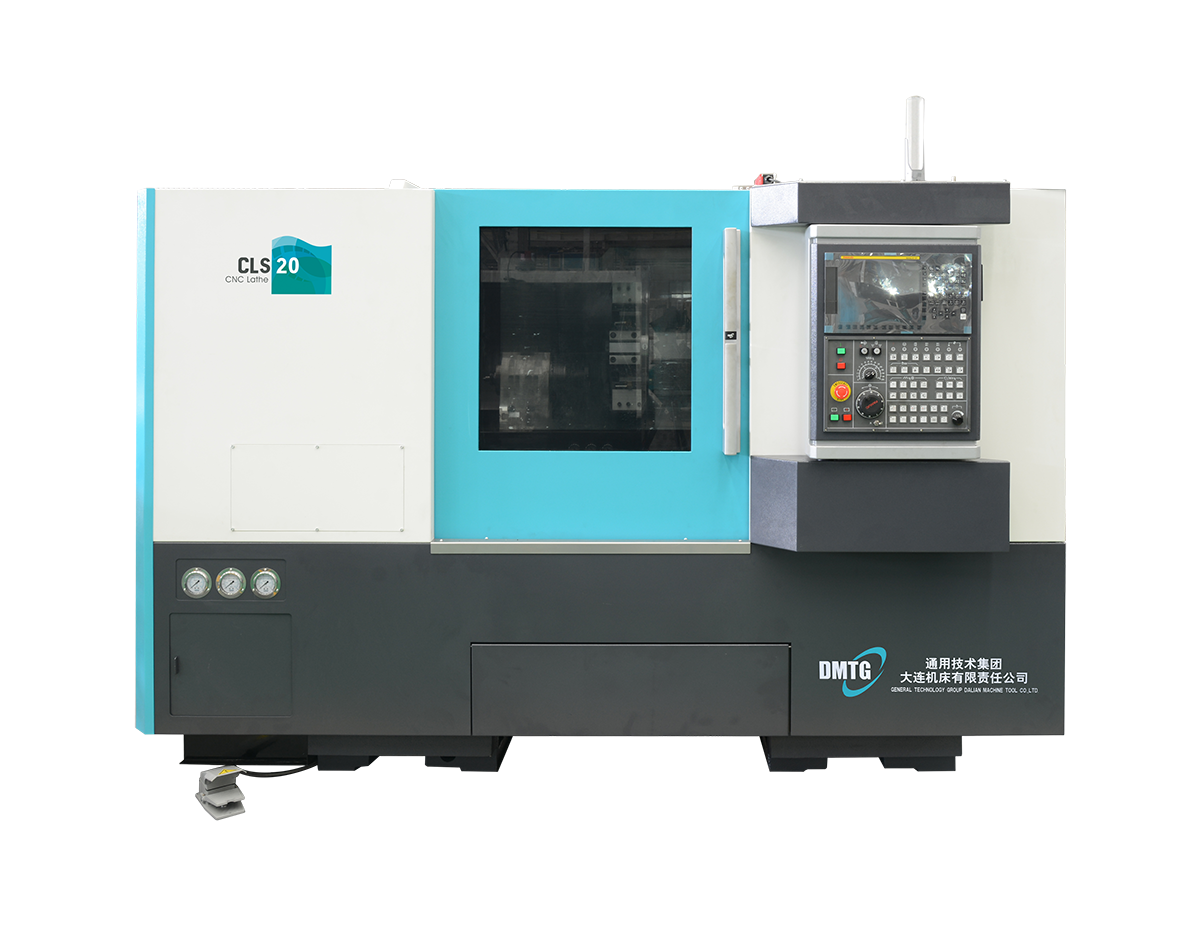

CNC LATHE DMTG CLS-20

215 284,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

CNC LATHE DMTG CLS-20 with FANUC 0i TF Plus control is a CNC lathe with very high accuracy and repeatability of positioning. In addition, the rotational speed of 4500 rpm and the machine weight of almost 5 tons make the machine meet the requirements of high-precision machining.

Quantity
Add to cart

CNC LATHE DMTG CLS-20 with FANUC 0i TF Plus control is a CNC lathe with very high accuracy and repeatability of positioning. In addition, the rotational speed of 4500 rpm and the machine weight of almost 5 tons make the machine meet the requirements of high-precision machining.

Standard equipment:
  • FANUC 0i TF Plus controller with 10.4 "screen

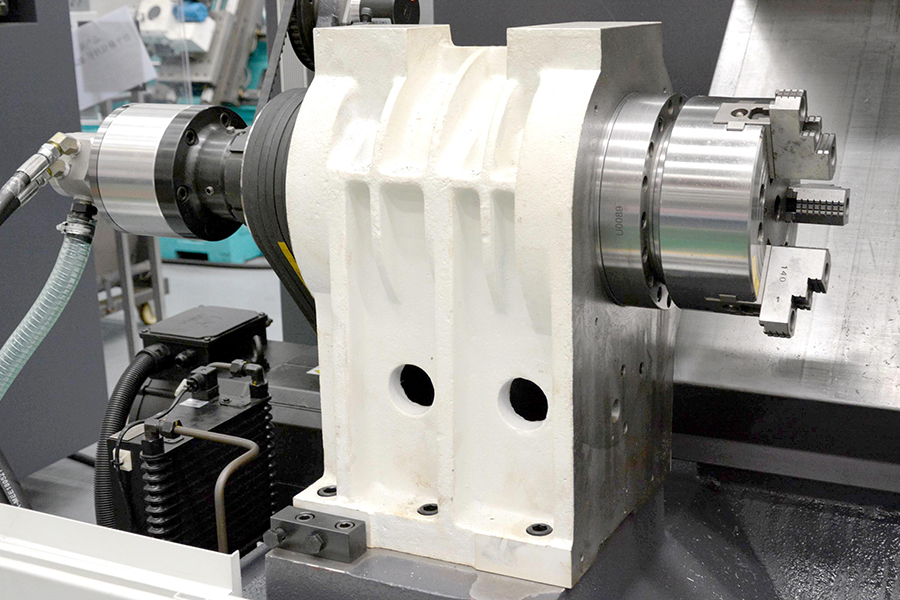

  • 8 ”3-jaw hydraulic blind chuck
  • 8 position hydraulic tool head

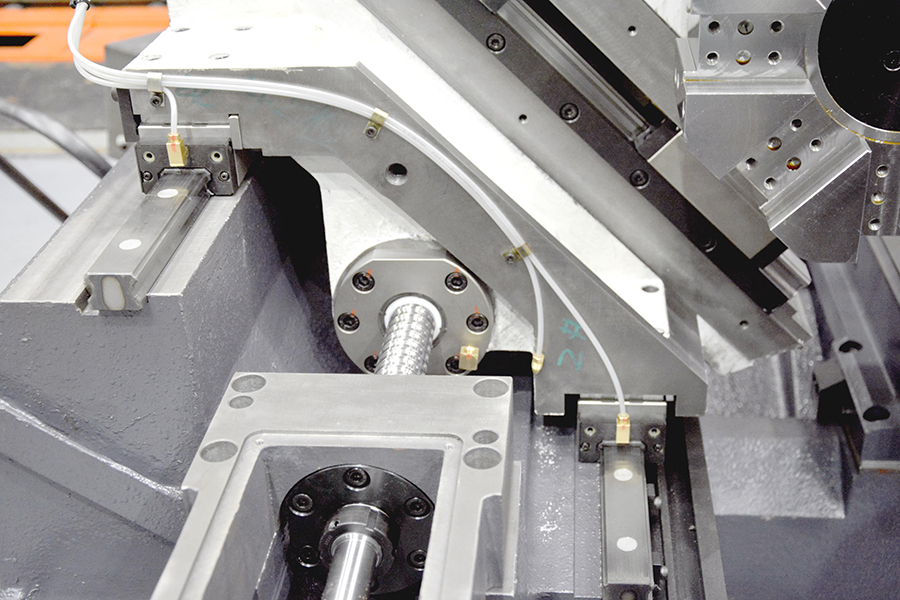

  • THK linear guides
  • Chain chip conveyor and chip container

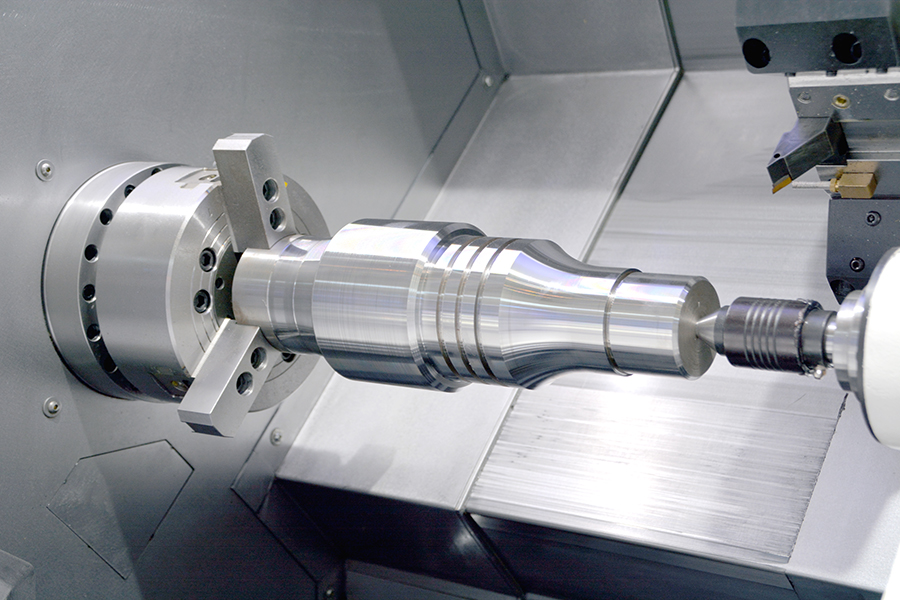

  • Hydraulic tailstock
  • Cooling system
  • USB port with DNC function (the machine can execute a program on a pendrive)
  • CE standard
  • Emergency light
  • Service tools
  • User manual in English
Optional equipment (paid additionally):
  • 8 "hydraulic 3-jaw through chuck (for 51mm shaft)
  • 8 "hydraulic 3-jaw through chuck (for a 74 mm shaft)
  • 12 position hydraulic tool head
  • Renishaw tool probe

Technical data Unit Value
Turning diameter over bed [mm] 300
Turning diameter over slide [mm] 260
Workpiece length [mm] 450
X-axis travel range [mm] 150
Z axis travel range [mm] 450
Rotation speed [rpm/min] 4500
Spindle tip [-] A2-6
Spindle flight [mm] 62
Tool size [mm] 25x25
Liczba narzędzi [pcs] 8/ (opc.12)
X / Z accelerated feed [m/min] 30
Extend the tailstock quill [mm] 130
Tailstock sleeve diameter [mm] 80
Tailstock taper [-] MT4
Main spindle motor [kW] 11
Cross feed [m/min] 30
External dimensions L x W x H [mm] 2850x2920x1760
Net weight [kg] 4500
