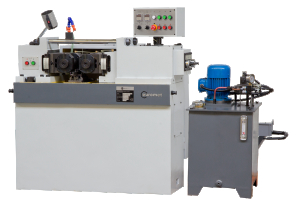

EUROMET TRM28-20J ROLLING MACHINE FOR THREADS AND SPLINES

Thread rolling machines (three rollers)

EUROMET TRM28-20J ROLLING MACHINE FOR THREADS AND SPLINES

125 370,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252

Quantity

Thread rolling machines are efficient machines for chipless processing of threads, splines, etc. In two-roll machines, the rolls rotate in a synchronized motion in the same direction, burnishing the thread or spline on the cylindrical surface. Rolling threads or splines is a more efficient and faster method than cutting them. Two-roll mills are used to make threads in solid materials, while three-roll mills are used to make threads on pipes. The TRM28-6.3A and TRM28-12.5 machines are blind machines and enable threading with the plunge method. The remaining two-roll machines are pass-through devices - they have tilting rolls - which allows making a thread longer than the width of the tools.

Standard equipment:

Hydraulic unit
User manual in English
CE Declaration of Conformity

Optional equipment (additionally paid):

Tool set for rolling threads, splines, etc.

Technical data	Unit	Value
Maximum rolling force (end of threads)	[KN]	200
Maximum diameter of the axial feed (end of threads)	[mm]	60
Maximum axial stroke (end of threads)	[mm]	60
Outer die diameter	[mm]	190-230
Die width	[mm]	160
Die bore diameter	[mm]	75
Spindle axis distance	[mm]	150 - 280
Spindle speed	[rpm/min]	16 - 92
Spindle tilt angle	[°]	±10
Rolling - feed value (stepless)	[mm/s]	1 – 5
Rolling - shift / stroke	[mm]	20
Rolling time	[s]	0 – 60
Total power	[kW]	9,1
Box dimensions (LxWxH)	[mm]	1810x1700x1380
Weight	[kg]	4000
