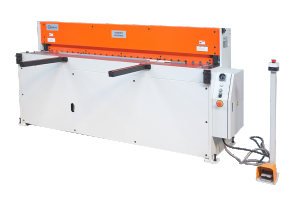

EUROMET HGO 25/6 hydraulic guillotine shears

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The EUROMET HGO 25/6 hydraulic guillotine shears are a machine where the knife is installed on two actuators on one side. It is possible to adjust the knife attack angle. Thanks to this function, the phenomenon of sheet metal twisting can be eliminated when cutting thin sheets and narrow strips. Machines based on documentation from the Belgian company LVD. Very good quality of machines and components used from European manufacturers Bosch Rexroth, Siemens, Telemechanique guarantee long, failure-free operation of the machine.

The EUROMET HGO 25/6 hydraulic guillotine shears are a machine where the knife is installed on two actuators on one side. It is possible to adjust the knife attack angle. Thanks to this function, the phenomenon of sheet metal twisting can be eliminated when cutting thin sheets and narrow strips. Machines based on documentation from the Belgian company LVD. Very good quality of machines and components used from European manufacturers Bosch Rexroth, Siemens, Telemechanique guarantee long, failure-free operation of the machine.
Machine Features:
  • Adjustment of the knife attack angle with digital readout
  • Adjustment of the gap between knives with a dial indicator
  • Adjusting the position of the rear bumper
  • Digital readout of the rear bumper position
  • Rear bumper on ball screws
  • Adjusting the length of the upper knife descent
  • Cut counter

Standard equipment:
  • Rear bumper powered by an electric motor
  • Digital reading of the rear bumper position,
  • Adjusting the gap between knives,
  • set of knives,
  • Ball guidance of the sheet metal on the table,
  • Front bottom bracket with measure
  • Securing the rear space with photocells,
  • Foot switch
  • Actuators pressing the sheet metal with covers
  • Cutting line lighting
  • User manual in English
  • CE Declaration of Conformity
Optional equipment (paid additionally):
  • NC control
  • CNC control
  • Thin sheet support system

Technical data Unit Value
Cutting width [mm] 2500
Sheet thickness (42 kg / mm2) [mm] 6
Sheet thickness (60 kg / mm2) [mm] 3
The number of beats per minute [-] 1545
The rake angle of the knife [°] 0,5-2,5
Number of upper sheet clamps [-] 13
Oil tank capacity [l] 110
Engine power [kW] 7,5
Cutting force [KN] 170
Dimensions [mm] 3445 x 1727 x 1615
Weight [kg] 4700
