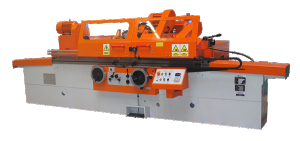

EUROMET MG 1332 cylindrical grinding machine
Priced individually
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The EUROMET MG 1332 cylindrical grinding machine is distinguished by its stable operation and relatively low noise level. These properties are due to the use of special screw pumps in hydraulic systems. An additional advantage is the fact that the spindles of the head guarantee high-accuracy rotary motion as well as exceptional stiffness.
The professional EUROMET MG 1332 cylindrical grinder available in our offer is distinguished by its stable operation and relatively low noise level. These properties are due to the use of special screw pumps in hydraulic systems. An additional advantage is the fact that the spindles of the head guarantee high-accuracy rotary motion as well as exceptional stiffness.
It is a universal machine tool with a modern design made in accordance with the applicable grinding standards. In addition, the possibility of extensive retrofitting of the device makes it suitable for every plant, also in work requiring very precise processing.
The presented roller grinder has a rigid, solid and compact structure, as well as a modern design and a functional, intuitive control panel.
Standard equipment:
- Coolant reservoir
- Dresser
- Grinding wheel
- Balancing mandrel
- 4 canines
- Bumper
- Tools for disassembling the grinding wheel
- Mounting for balancing the grinding wheel
- User manual in English
- CE declaration of conformity
- Internal grinding head
- 3-jaw chuck
- Internal grinding nozzle
Optional equipment (additionally payable):
- Steady rest open
- Closed steady rest
- 4-jaw chuck
- Grinding wheel with a flange
- Diamond dresser
| Technical data | Unit | Value |
|---|---|---|
| Max. grinding length | [mm] | 500 - 1000 |
| Center height | [mm] | 180 |
| Max. workpiece length (between centers) | [mm] | 520 - 1080 |
| Max. external workpiece diameter | [mm] | 320 |
| External grinding range | [mm] | 5 - 320 |
| Max. detail weight | [kg] | 70 |
| Grinding wheel dimension (external dia. × width × bore) | [mm] | 400 × (32-50) × 203 |
| Max. grinding wheel speed | [m/s] | 35 |
| Swiveling angle of worktable – clockwise | [°] | 9/ 8/ 3 |
| Swiveling angle of worktable – counter-clockwise | [°] | 9/ 8/ 7 |
| Workhead tilt | [°] | ±12 |
| Taper hole of spindle | [-] | Morse 4 |
| Taper hole of tailstock | [-] | Morse 3 |
| Total power | [kW] | 4,8 |
| Weight | [kg] | 2500 |
