Didactic CNC machining centers

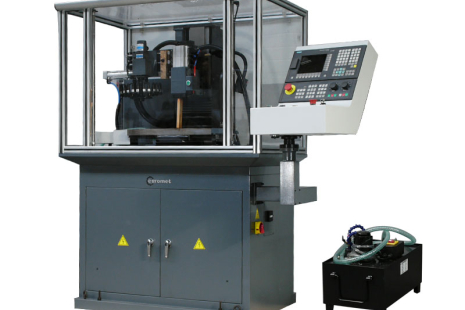

EUROMET SKOLAR iX1 CNC machining center (Sieg)

32 200,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET SKOLAR iX1 CNC machining center (Sieg) is a small, economical CNC machining center, providing high educational values at great financial outlays. The machine is equipped with a 4-position tool magazine. The axes are driven by high-quality stepper motors, the ribbed cast base ensures appropriate stiffness. The renowned CNC control enables the teaching process to be carried out on one of the most popular models currently on the market.

Quantity
Add to cart

The EUROMET SKOLAR iX1 CNC machining center (Sieg) is a small, economical CNC machining center, providing high educational values at great financial outlays. The machine is equipped with a 4-position tool magazine. The axes are driven by high-quality stepper motors, the ribbed cast base ensures appropriate stiffness. The renowned CNC control enables the teaching process to be carried out on one of the most popular models currently on the market. The machine allows you to perform all basic milling operations. Fully glazed covers enable trouble-free observation of the machining process. Small dimensions, weight and 230V power supply allow you to easily place the machine in almost any place.

Standard equipment:
  • User manual in English
  • Full transparent covers of the workspace
  • 4-position tool magazine
  • Sieg control
  • Power supply 230V, 50Hz
  • The structure is based on ribbed iron castings
  • All axes are driven by stepper motors and ball screws
  • Semi-automatic lubrication system
  • Cooling system
  • Preparation for the 4th axis
  • CE Declaration of Conformity
  •
Optional equipment (additionally paid):
  • Rotary table 100mm (4th axis)
  • Set for mounting details on the table
  • Tool holder
  • Vice
  • Angle vice
  • Milling cutter starter set
  • Engraving tool set
  • Base

Technical data Unit Value
Drilling diameter [mm] 16
Worktable size (length) [mm] 400
Worktable size (width) [mm] 145
T-slot width [mm] 12
Number of T-slots [-] 3
Table load [kg] 20
X axis travel [mm] 260
Y axis travel [mm] 150
Z axis travel [mm] 180
X / Y axis motor torque [Nm] 1,35
Z axis motor torque [Nm] 2,2
Number of tools [-] 4
X / Y / Z axis accelerated feed [mm/min] 2000
Working feed of the X / Y / Z axis [mm/min] 500
Recess [mm] 150
Positioning accuracy [mm] 0,015
Accuracy of re-positioning [mm] 0,01
Spindle taper [-] ISO20
Rotation speed [rpm/min] 100 - 7000
Spindle motor power [W] 1000
Dimensions [mm] 1040x860x940
Weight [kg] 178
