EUROMET SKOLAR X1 CNC milling machine

CNC didactic milling machines

EUROMET SKOLAR X1 CNC milling machine

19 900,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

Quantity

Add to cart

Product description
Product parameters (See more)

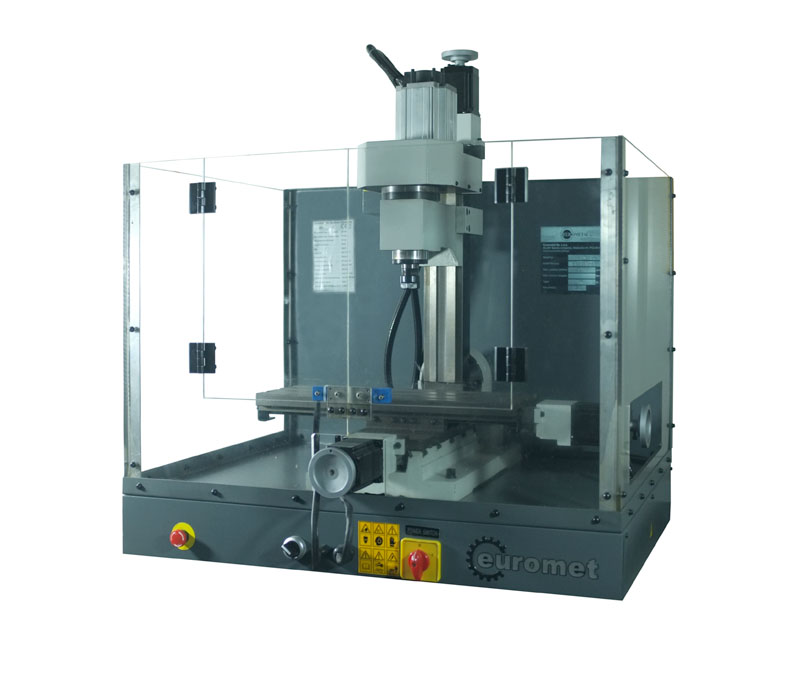

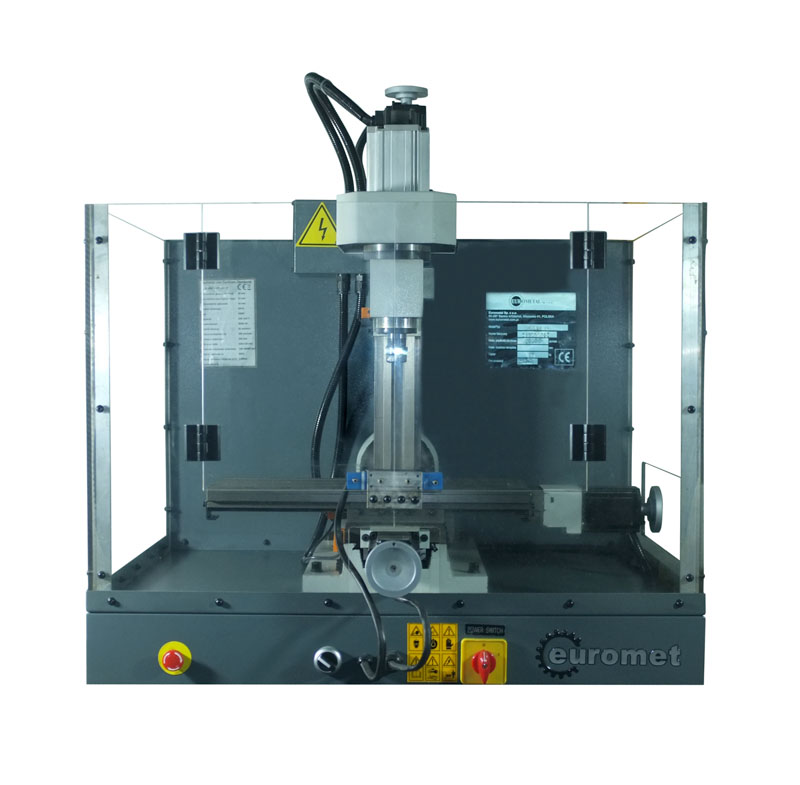

The EUROMET SKOLAR X1 CNC milling machine is a small, economical CNC training machine. The teaching machine provides high educational values at low financial costs. The axes are driven by high-quality stepper motors. The milling machine can be controlled manually or via software installed on a PC. The device allows you to perform all basic milling operations. Small dimensions, weight and 230V power supply allow you to easily place the machine in almost any place.

Standard equipment:

CE Declaration of Conformity
SIEG control
Possibility of manual and automatic operation
High-quality stepper motors
Power supply 230V/50HZ
User manual in English

Optional equipment (additionally paid):

Rotary table 100mm (4th axis)
Set for mounting details on the table
Vice
Angle vice
Milling cutter set
Engraving tool set
Cooling system

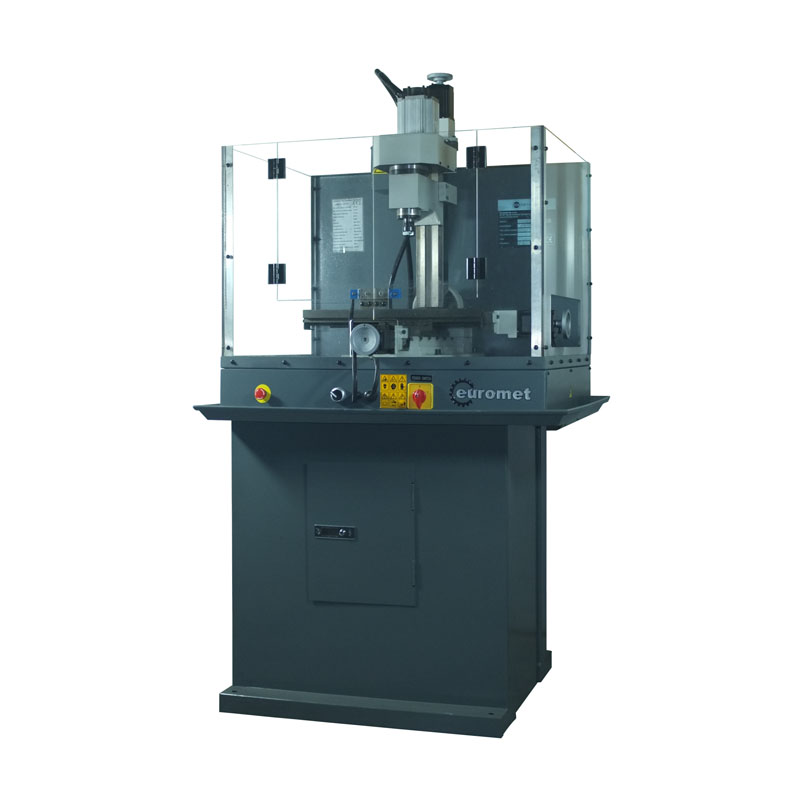

Base

Technical data	Unit	Value
Table dimensions (length)	[mm]	400
Table dimensions (width)	[mm]	145
X axis feed range	[mm]	230
Y axis feed range	[mm]	120
Z axis feed range	[mm]	230
Spindle speed range	[rpm/min]	100 - 20000
Table load capacity	[kg]	5
Spindle taper	[-]	ER16
Accelerated feed X	[mm/min]	2000
Accelerated feed Y	[mm/min]	2000
Accelerated feed Z	[mm/min]	2000
T-slots (No. x width x spacing)	[mm]	8x9
Feed rate (X / Y / Z)	[mm/min]	500
Headstock motor power	[kW]	0,5
Drilling diameter	[mm]	10
Recess	[mm]	140
Device dimensions	[mm]	560x680x800
Weight	[kg]	130
