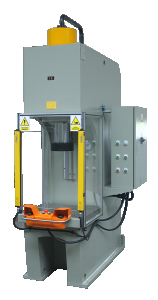

EUROMET PH-63T HYDRAULIC PRESS
68 000,00 zł net
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
EUROMET PH series high-speed hydraulic industrial presses are controlled by a two-handed control panel located at the front of the machine. It is possible to work in automatic or manual mode. The pressure is adjusted using a knob.
Quantity
Add to cart
EUROMET PH series high-speed hydraulic industrial presses are controlled by a two-handed control panel located at the front of the machine. It is possible to work in automatic or manual mode. The pressure is adjusted using a knob. The oil tank is located in the machine body. Its level can be read on the oil gauge. The press is equipped with safety devices such as a light curtain and limit switches in the electrical box and rear door.
The pressure of the PH series presses is from 25 to 400 tons. The working speed is (depending on the pressure) from 15 mm/s to 48 mm/s. As standard, it has a work table with T-slots and an extrusion hole with the option of retrofitting a bottom cushion.
Other technical parameters of the press on request.
The press has an EC type examination issued by a notified body.
Standard equipment of the press:
- light curtain
- two-handed control panel
- large table with T-slot and hole
- user manual in English
- CE Declaration of Conformity
| Technical data | Unit | Value |
|---|---|---|
| The power of pressure | [KN] | 630 |
| Hydraulic oil pressure | [MPa] | 16,5 |
| Maximum stroke of the slipper | [mm] | 500 |
| Working speed of the slider | [mm/s] | 39 |
| Speed of the spool return movement | [mm/s] | 84 |
| A recess in the side wall | [mm] | 300 |
| The width of the table | [mm] | 580 |
| Table length | [mm] | 600 |
| Table foundation height | [mm] | 730 |
| The diameter of the hole in the table | [mm] | 120 |
| Main engine power | [kW] | 7,5 |
| External dimensions (LxWxH) | [mm] | 1550x825x2350 |
| Weight | [kg] | 4000 |
