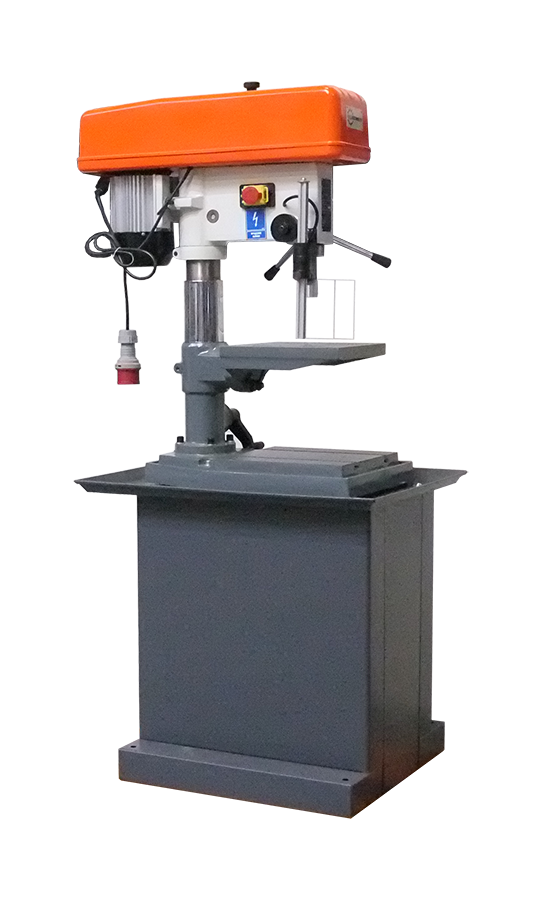

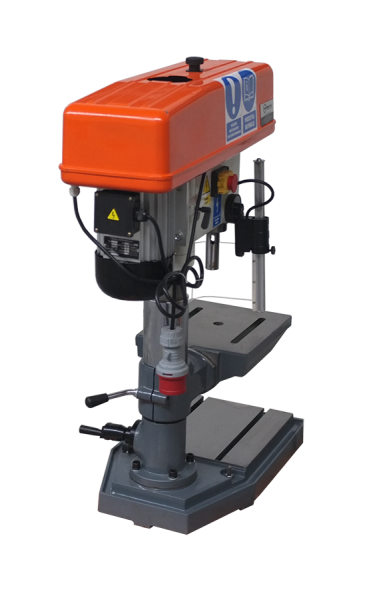

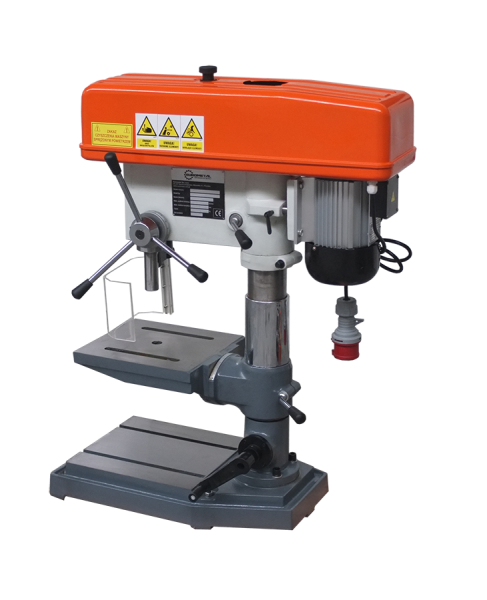

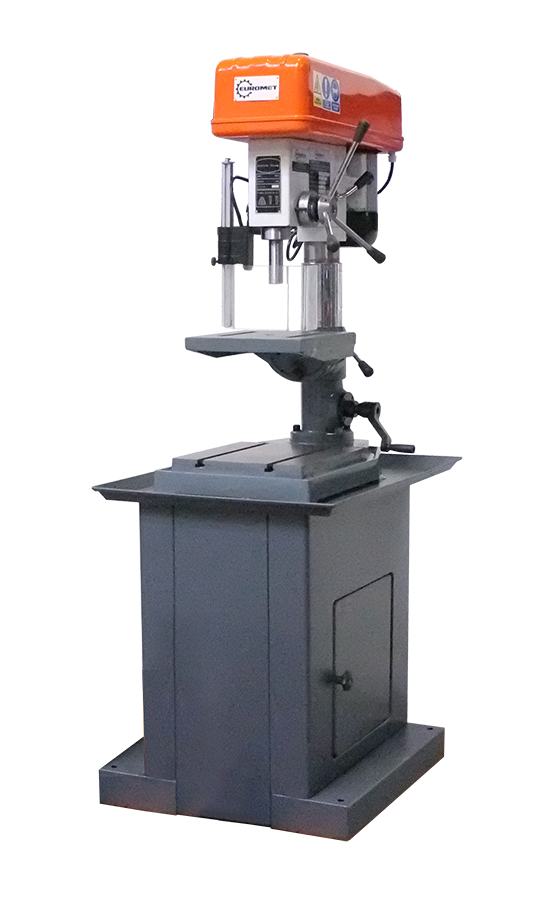

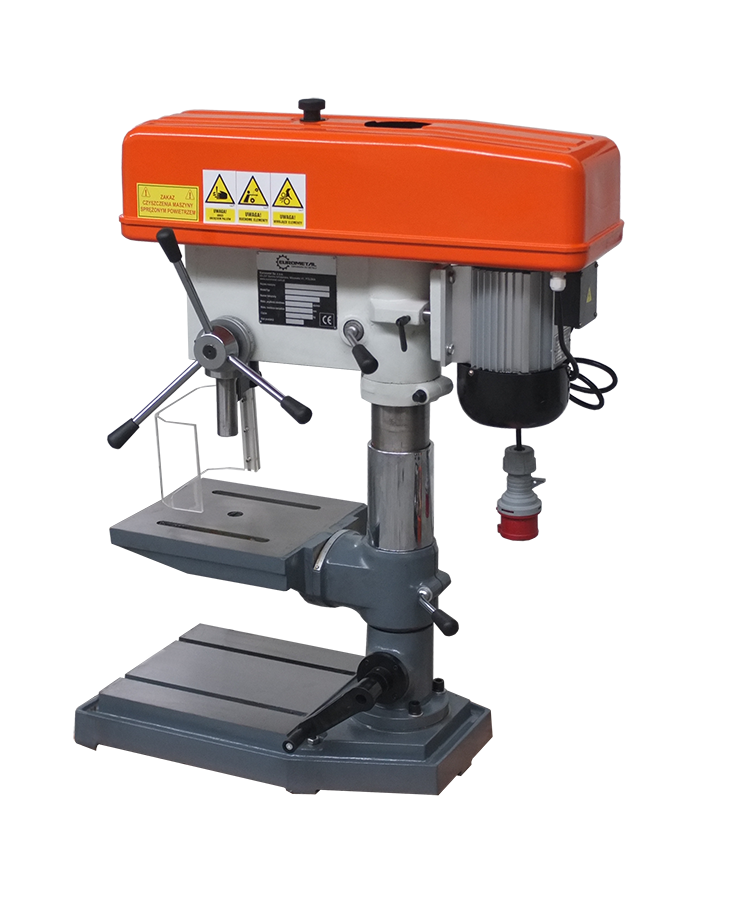

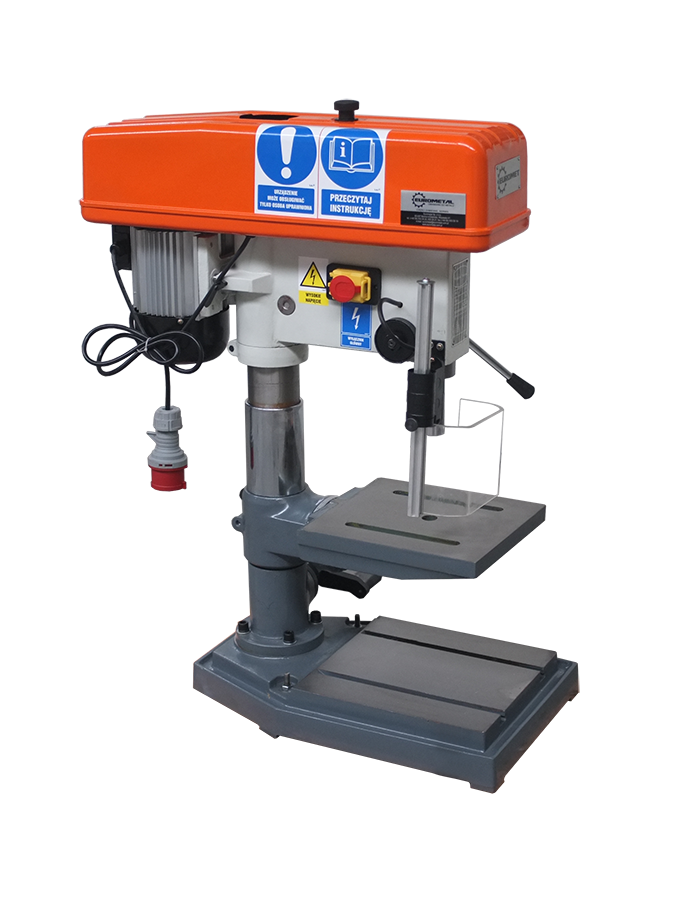

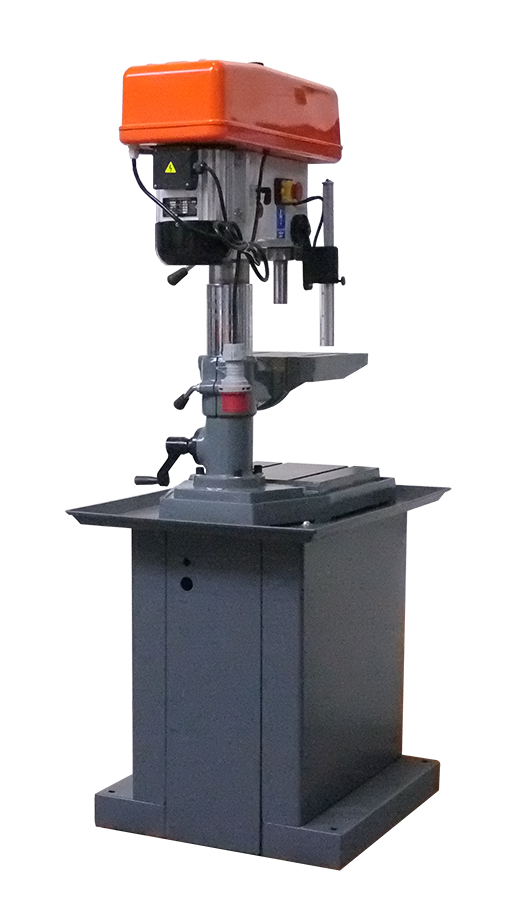

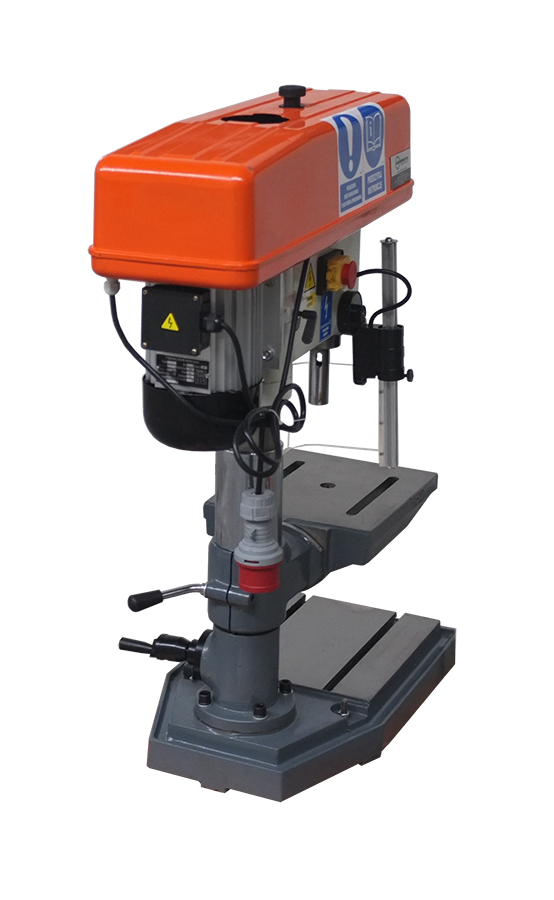

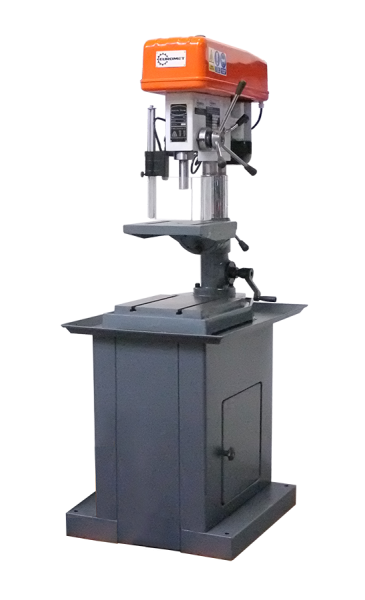

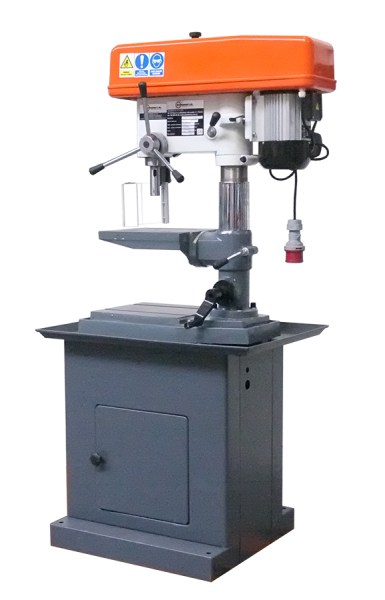

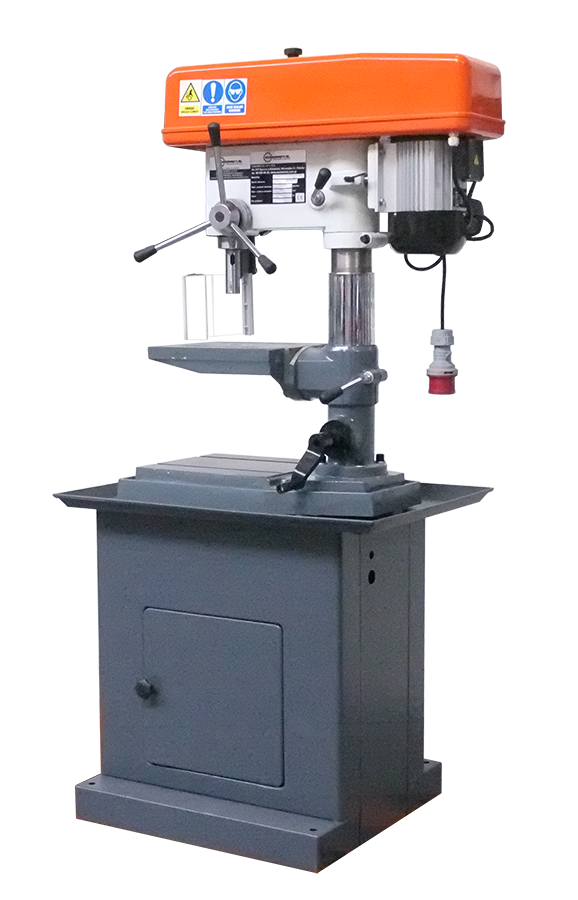

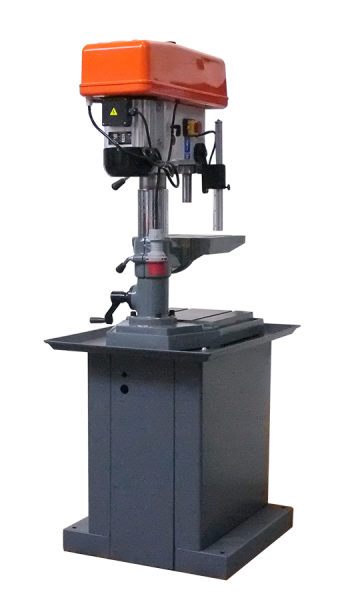

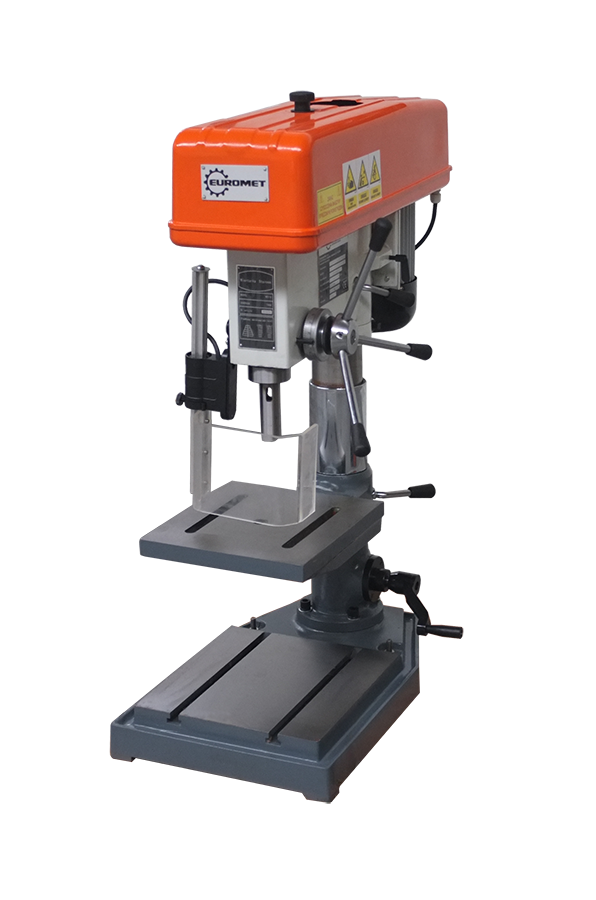

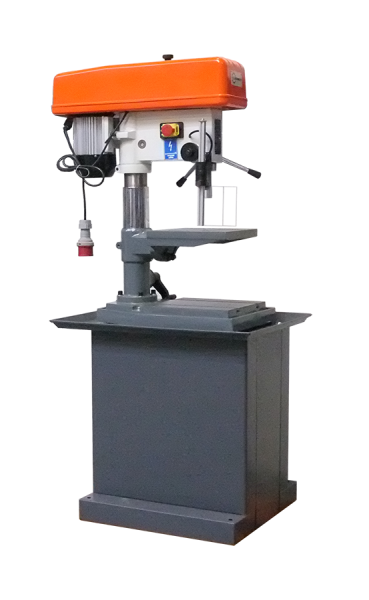

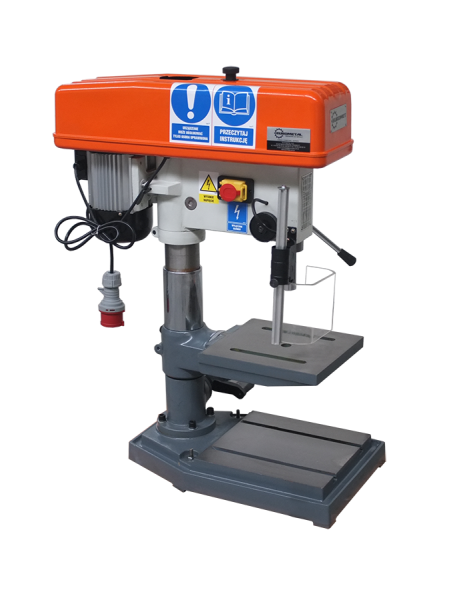

EUROMET WS16 table drilling machine

Table drilling machines

EUROMET WS16 table drilling machine

3 600,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The main advantage of the EUROMET WS16 pillar drilling machine is its proven, very simple structure, and thus a small number of components that can be damaged. The machine is practically maintenance-free, therefore it is perfect as a generally available device used to support production. The spindle speed is changed by changing the ratio of the belts.

Quantity

The universal bench drill is used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation.

It is designed to perform the following operations:

drilling
reaming
drilling
rough boring

The main features of the device:

simple construction
massive structure

Standard equipment:

Manually lifted table
16mm drill chuck
Tilting table +/- 45˚
Machine manual in English
CE Declaration of Conformity

Technical data	Unit	Value
Drilling diameter in steel	[mm]	16
Column diameter	[mm]	85
Extend the spindle sleeve	[mm]	125
Spindle body width	[mm]	96
Distance between the spindle and the column	[mm]	240
Distance from spindle to worktable	[mm]	367
Distance from spindle to base	[mm]	630
Spindle taper	[-]	No. 2
Number of spindle speed ranges	[-]	5
Spindle rotation	[rpm/min]	365 - 3150
Dimensions of the working table	[mm]	280×300
Base dimensions	[mm]	315×335
Table tilt angle	[°]	+/- 45
Engine power	[kW]	0,75
Dimensions	[mm]	900×560×1080
Device weight	[kg]	145
