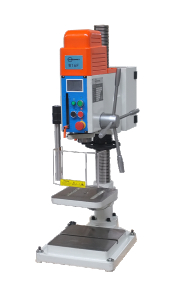

EUROMET WS16 table drilling machine

3 950,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Adrian Miotk
E-mail: adrian.miotk@eurometal.com.pl
Telefon: 603400333

The main advantage of the EUROMET WS16 pillar drilling machine is its proven, very simple structure, and thus a small number of components that can be damaged. The machine is practically maintenance-free, therefore it is perfect as a generally available device used to support production. The spindle speed is changed by changing the ratio of the belts.

Quantity
Add to cart

The main advantage of the EUROMET WS16 pillar drilling machine is its proven, very simple structure, and thus a small number of components that can be damaged. The machine is practically maintenance-free, therefore it is perfect as a generally available device used to support production. The spindle speed is changed by changing the ratio of the belts.
The universal bench drill is used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation.
It is designed to perform the following operations:
  • drilling
  • reaming
  • drilling
  • rough boring
The main features of the device:
  • simple construction
  • massive structure

Standard equipment:
  • 16mm drill chuck
  • machine manual in English
  • CE declaration of conformity

Technical data Unit Value
Drilling diameter in steel [mm] 16
Column diameter [mm] 85
Extend the spindle sleeve [mm] 125
Distance between the spindle and the column [mm] 240
Distance from spindle to worktable [mm] 367
Distance from spindle to base [mm] 630
Spindle taper [-] No. 2
Number of spindle speed ranges [-] 5
Spindle rotation [rpm/min] 365 - 3150
Dimensions of the working table [mm] 280×300
Base dimensions [mm] 315×335
Engine power [kW] 0,75
Dimensions [mm] 900×560×1080
Device weight [kg] 145
