Table drilling machines

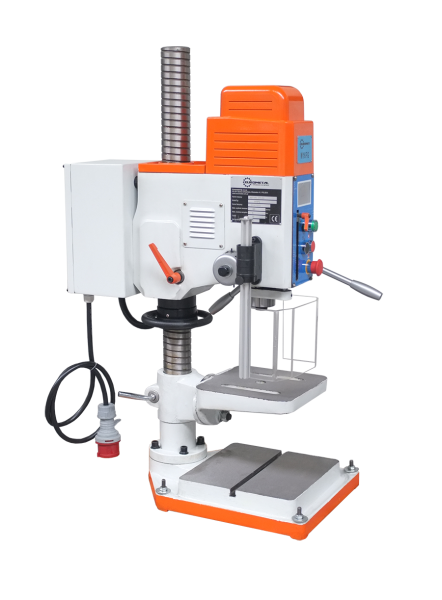

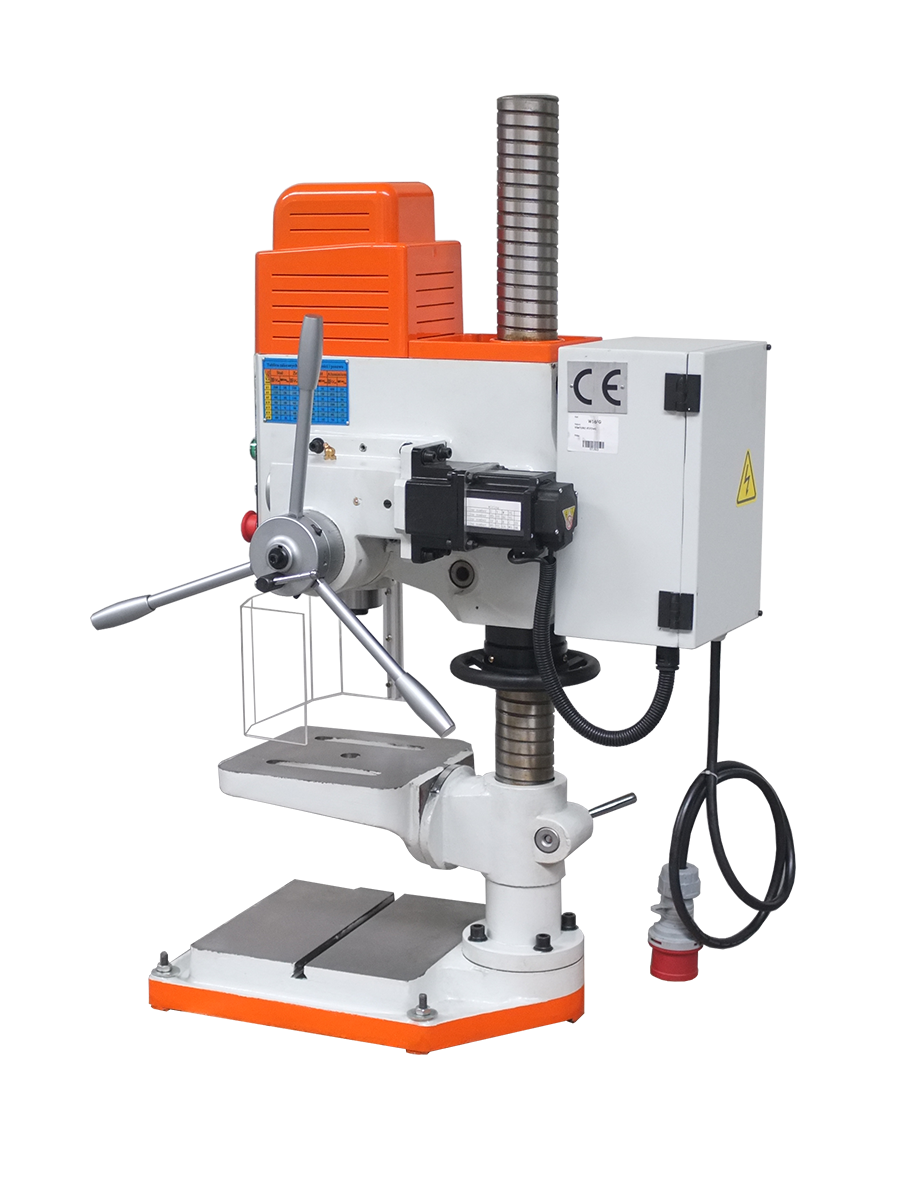

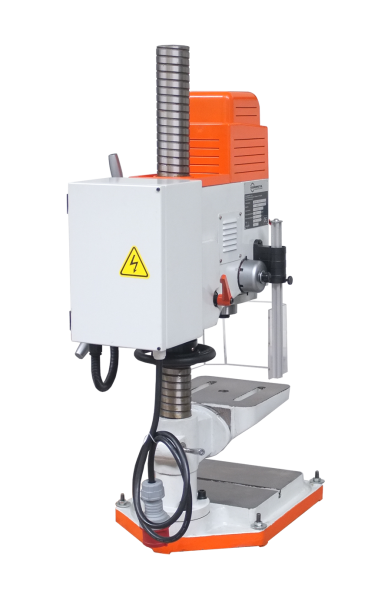

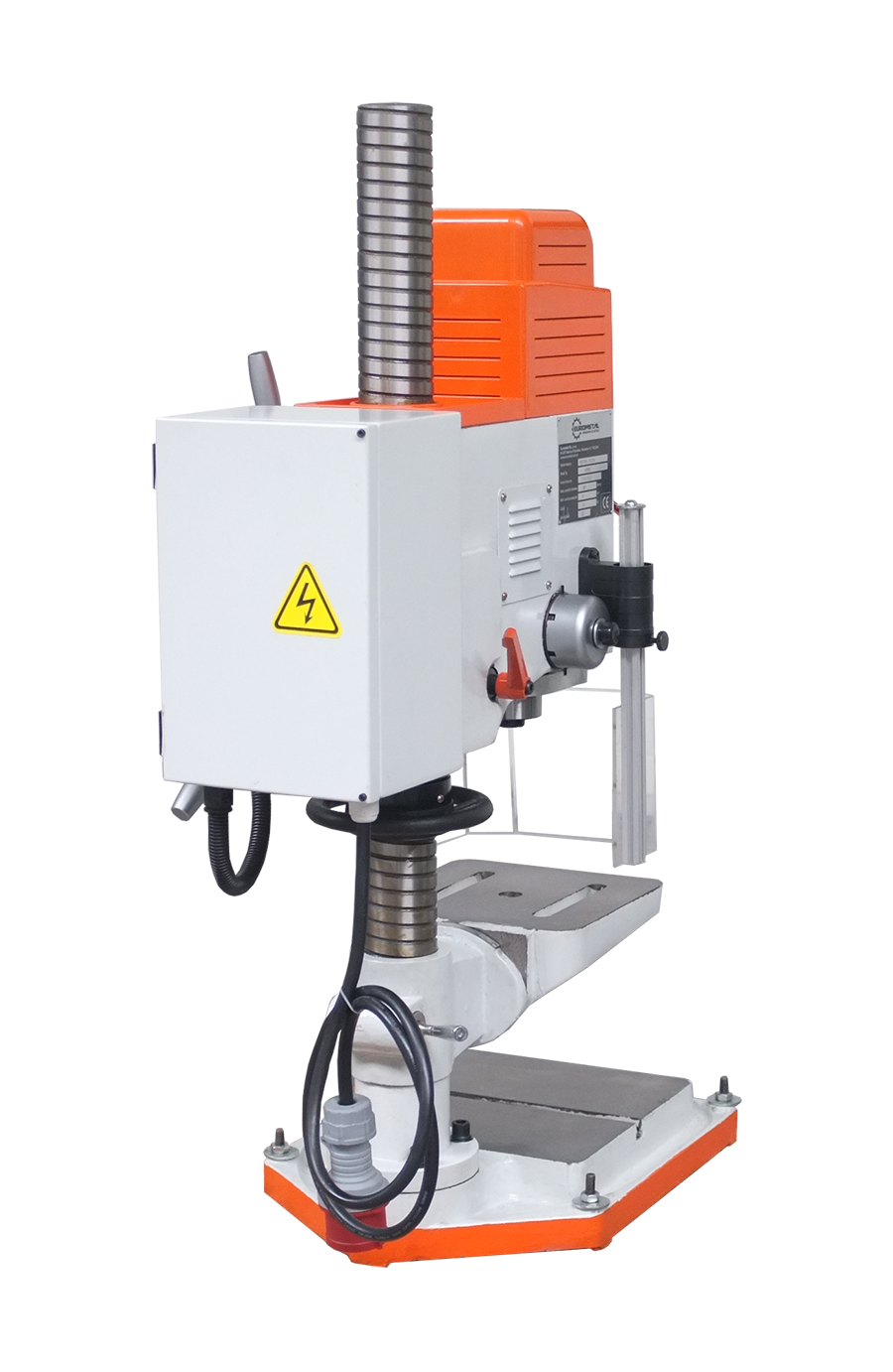

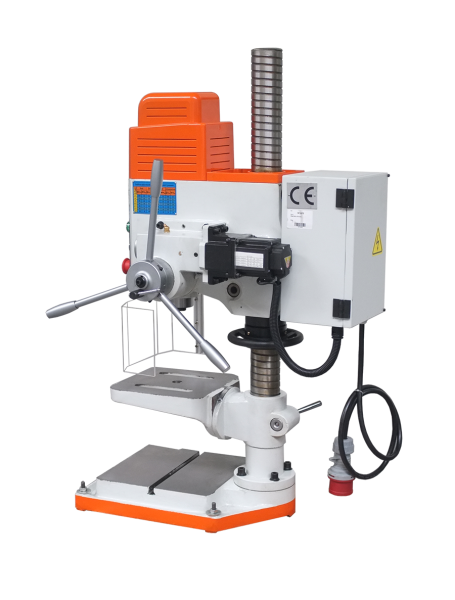

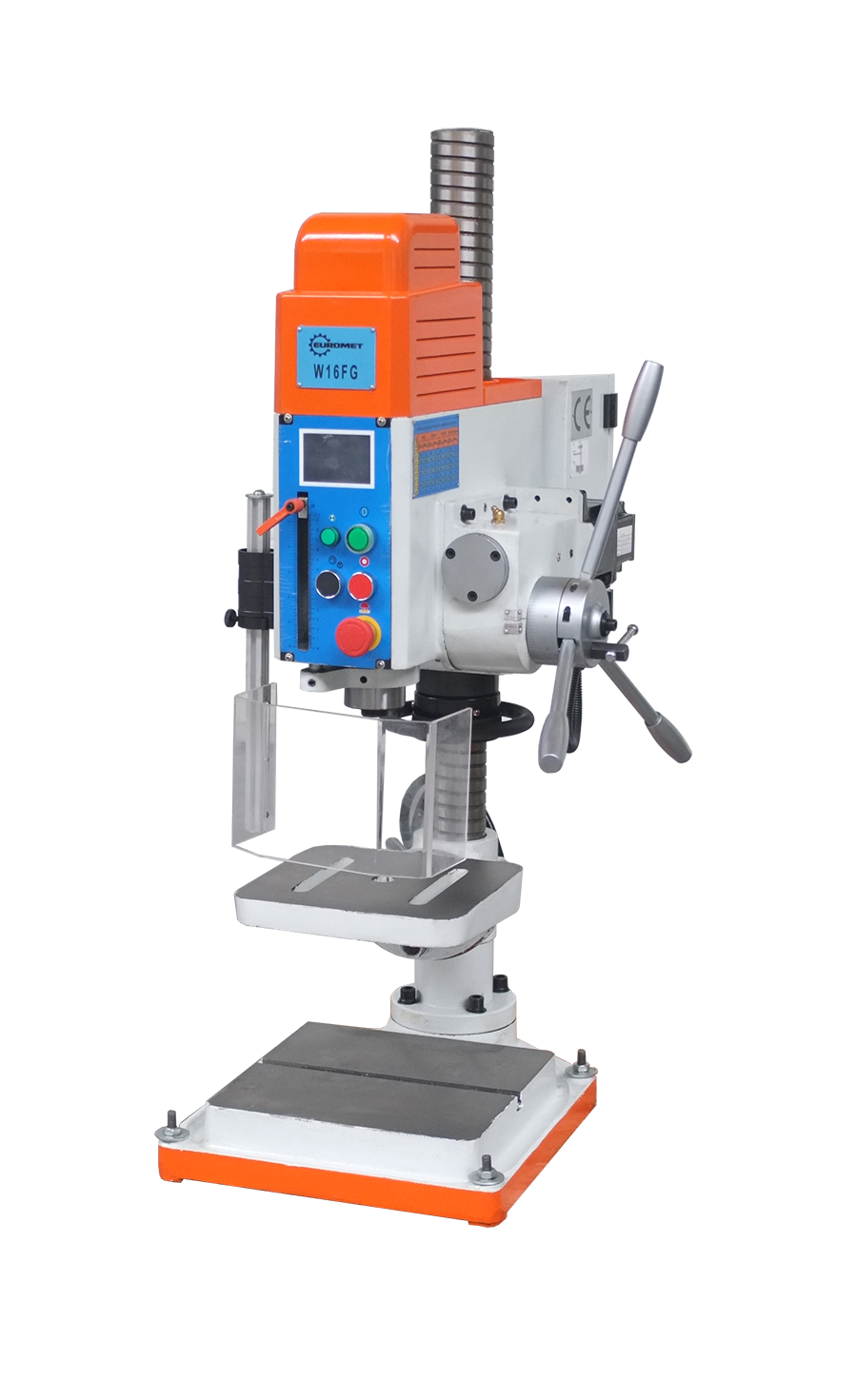

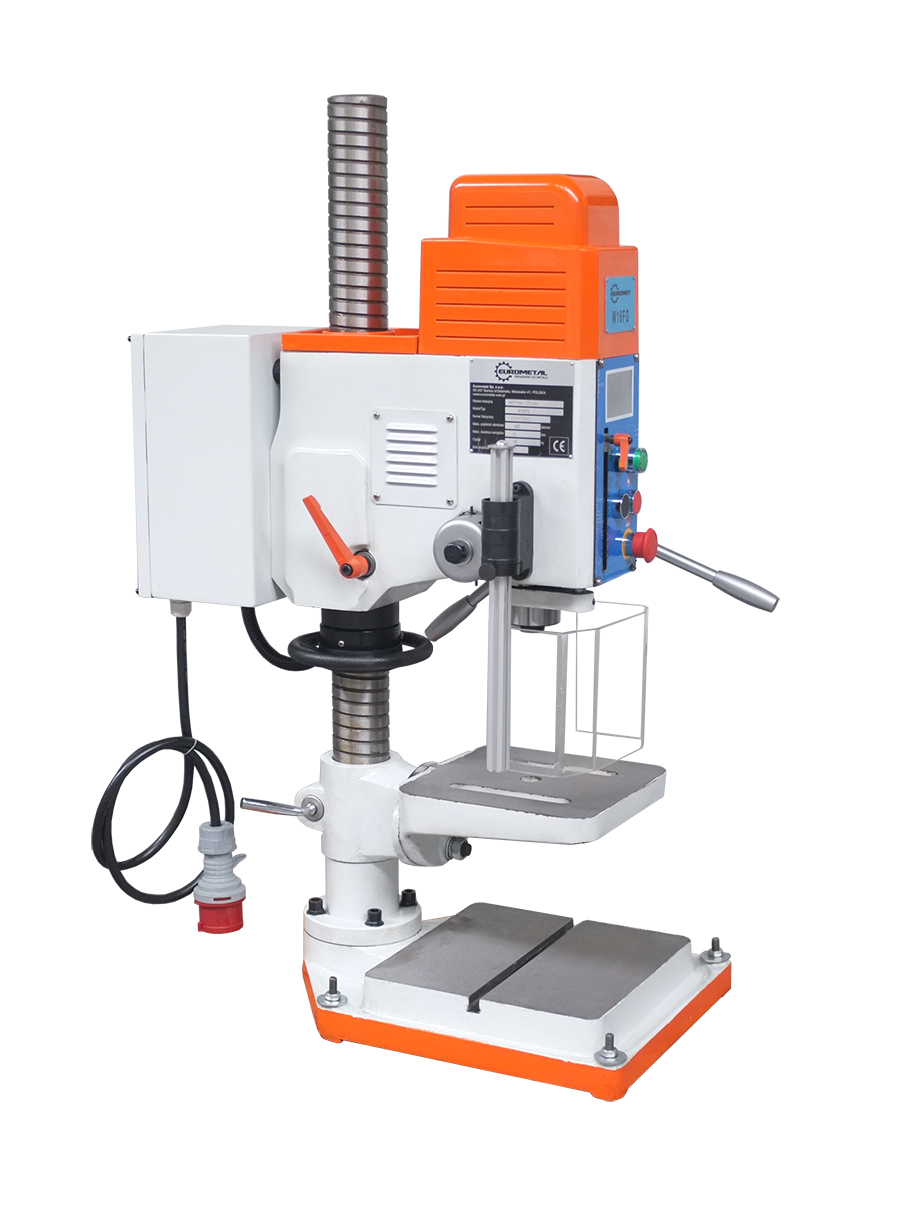

EUROMET W16FG table drilling machine

7 550,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Adrian Miotk
E-mail: adrian.miotk@eurometal.com.pl
Telefon: 603400333

The universal EUROMET W16FG table drill can be used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation. Automatic feed possible.

Quantity
Add to cart

The universal EUROMET W16FG table drill can be used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation. Automatic feed possible.
It is designed to perform the following operations:
  • drilling
  • reaming
  • drilling
  • threading
  • rough boring

Standard equipment:
  • drill chuck with arbor Morse No. 2
  • machine manual in English
  • CE declaration of conformity

Technical data Unit Value
Drilling diameter in steel [mm] 16
Tapping diameter in cast iron / cast iron [-] M12/M10
Column diameter [mm] 70
Extend the spindle sleeve [mm] 100
Distance between the spindle and the column [mm] 260
Distance from spindle to worktable [mm] 590
Distance from spindle to base [mm] 805
Spindle taper [-] Morse No. 2
Number of spindle speed ranges [-] Bezstopniowa zmiana prędkości
Spindle rotation [rpm/min] 300 - 4600
Dimensions of the working table [mm] 265 x 285
Base dimensions [mm] 300 x 300
Engine power [kW] 0,75
Dimensions [mm] 730 x 500 x 1185
Device weight [kg] 145
