Compacting metal chips

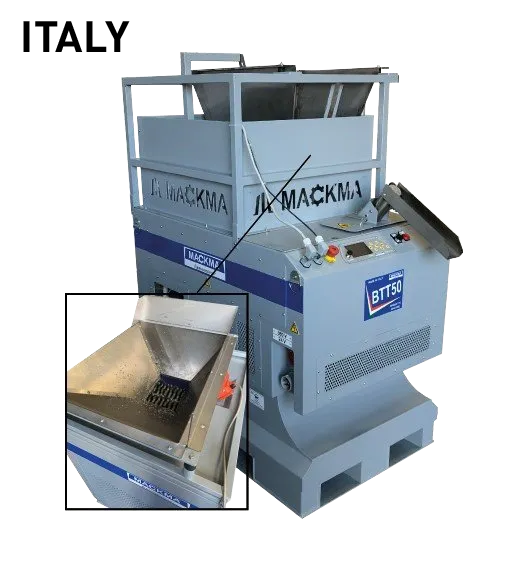

MACKMA BTT50H briquetting machine
256 482,00 zł net
No rating
12 months of warranty
Brykieciarka MACKMA BTT50H (maszyna do zagęszczania wiórów metalowych) pozwala na uzyskanie dużych oszczędności związanych z przechowywaniem i utylizuje odpady metalowych. Wstępnie oczyszcza z oleju po obróbce metali.
Quantity
Add to cart
The BTT50H briquetting machine (machine for thickening metal chips) allows for large savings in storage and utilizes metal waste. Pre-cleans oil after metal processing.
A machine designed for compacting metal chips from mechanical processing.
Different types of savings related to: - automatic cycle processing without the presence of a human for chip processing
- recovery of plant area originally intended for waste storage
- reuse of coolant recovered from the briquetting press
- ease of use
- small space requirement
- ability to adapt to various types of surface layout
- machinable materials: all materials with processing residues (steel, aluminum, brass, filings, grinding sludge, etc.)
- areas of application: mechanical and industrial processing in many sectors
- User manual in English
| Technical data | Unit | Value |
|---|---|---|
| Briquette diameter | [mm] | 55 |
| Max. briquette length | [mm] | 55 |
| Aluminum production | [kg/h] | 25 - 30 |
| Steel production | [kg/h] | 60 - 70 |
| Engine power | [kW] | 5 |
| Voltage | [V] | 380/400 |
| Energy consumption per hour | [kW] | 0,6 |
| Power supply | [Hz] | 50 |
| Double acting hydraulic piston | [-] | tak |
| Number of cycles per minute | [-] | 3 |
| Oil tank | [l] | 50 |
| External oil drain and regeneration tank | [-] | opcja |
| Radiator with double oil temperature control | [-] | tak |
| Internal performance hydraulic pump | [l/min] | 40 |
| Built-in vibration tank | [-] | tak |
| Additional chip mixer | [-] | opcja |
| Built-in long chip shredder | [-] | opcja |
| Tank capacity | [l] | 300 |
| Start/stop of the automatic level sensor | [-] | tak |
| Removable control panel | [-] | tak |
| Possibility of external power supply to the machine | [-] | tak |
| Sensor for communication with other machines | [-] | tak |
| Internal oil filter | [-] | tak |
| Pressure control manometer | [-] | tak |
| Touch screen with remote control software | [-] | tak |
| USB port for operating a webcam | [-] | tak |
| Possibility to enable Mackma remote assistance | [-] | tak |
| Noise level | [dB] | 72 |
| Dimensions | [mm] | 1200 x 802 x 1100 |
| Weight | [kg] | 800 |
