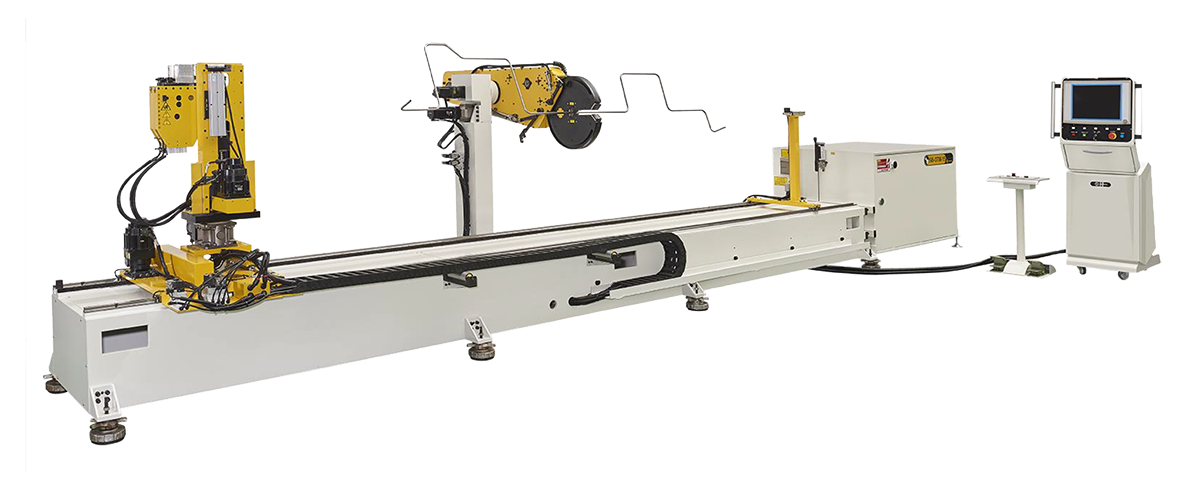

All electric (8 Axis) tube bending machine for oil and brake line. The SOCO SB-OTM-15 is a dedicated CNC brake line bender, designed for small tubing, especially Bundy tubes.
All electric (8 Axis) tube bending machine for oil and brake line. The SOCO SB-OTM-15 is a dedicated CNC brake line bender, designed for small tubing, especially Bundy tubes. Max. bending capacity up to OD 15 mm with 8 electric axis and a unique design to allow bending the most complex shapes and parts, it offers the most advanced solution and performance in its range.
Automation
- 8 Electric Axis controlling bending, tube rotation and carriage movement
- Automatic bending head reversal (left-to-right) when reaching central clamping area, providing a fully automatic cycle for the entire bending process
- Optional automatic loading and unloading
Performance
- Centralized clamping and rotation system for true simultaneous moving of all axis
- Lowest cycle times because minimal number of moving parts
- Suitable for brake line tubing up to 5000 mm
- Unparalleled speed: 1 bend = 2.8 second (OD 15.9 mm x 1.5t)
Maximum Working Area = Minimal Interference
- No interference with machine bed
- No conventional bending arm
- No pressure die and wiper die seat interferences
- Central clamping and rotation away from bending zone
- Overmode (arm return mode) capabilities
Software
- May program up to 50 bends per part, with on-screen 3D part display
- Data entry for both XYZ and YBC coordinates
- Overmode (arm return mode) offers flexibility to offset each bend and avoid bending interferences
- Integrated automatic bending vompensation and reverse engineering of bends when connected to CMM measuring systems
- Connection to local area network (LAN) (optional)
Options:
- Tube bender tooling
- Machine feeding length / mandrel length extensions
- 3 sides safety fencing with doors and interlocks
- Safety mat
- SICK laser scanner
- Light curtains / photocell barriers
- SOCO i2 controls – offline version
- SOCO CAD reader
- Interface to AICON systems
- Interface to CMM systems
- SOCO bending simulation + collision detection software
- SOCO production report system
- SOCO machine maintenance tracking system
- Air conditioning system for IPC
- Air conditioning system for electric cabin
- Setup for future connection to SOCO automation systems
SPECIFICATION
- Max. mild steel capacity: OD 15 x 1,5t x CLR3.0D mm
- Max. tube length: 5000 mm
- Draw bending radius: min. 15 ~ maks. 55 (CLR) mm
- Max. bending angle: 185°
- Dimensions: (L x W x H) 7780 x 1550 x 2030 mm
- Weight: 2500 kg
Date of publication: 05.08.2024
