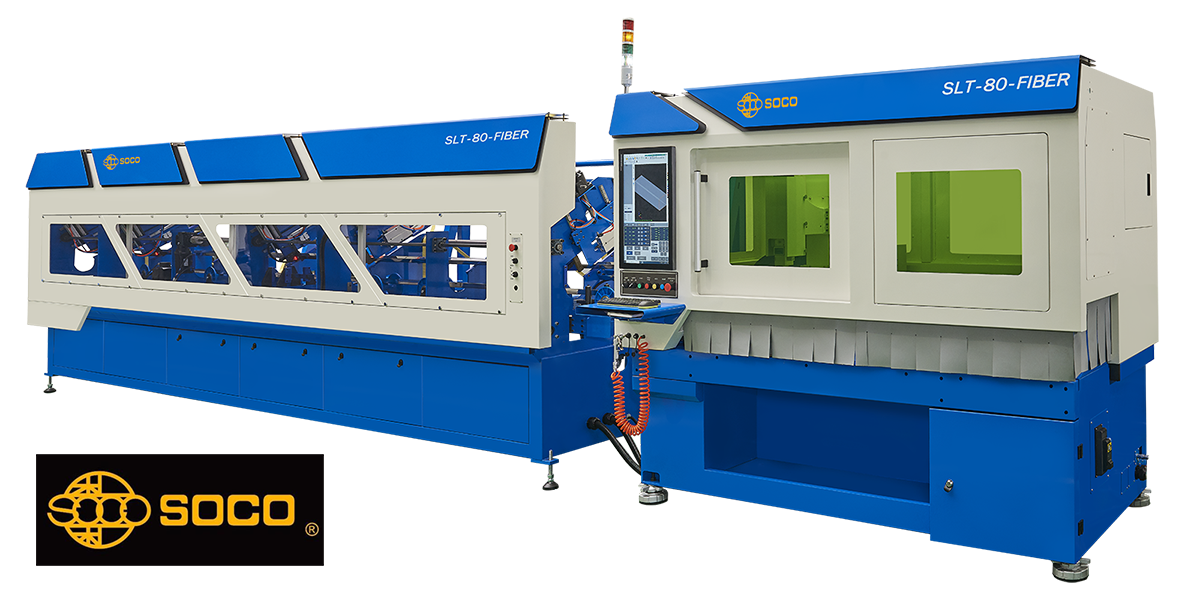

SOCO SLT-80-Fiber laser pipe cutting machine
The new SOCO SLT-80-Fiber pipe laser cutting machine offers cutting-edge technology, full automation and high precision and output power. It is ideal for a wide range of applications and materials.
Device features:
10 axes driven by servo motors
Full automation: from loading pipes, through feeding, rotation, cutting to unloading
Possibility to work in automated cells, cooperation with devices such as:
- Deburring machine
- Beveling machine
- Pipe washer
- Measuring device
High precision (repeatability ± 0.03mm, angular accuracy ± 0.1°)
Ability to cut hard materials
Cooperation with intelligent soco i2 and soco IRMS systems
Technical parameters:
Laser power (standard): 1.5 kW
Laser power (optional): 2.0 / 3.0 kW
Diameter of cut pipes: 12 - 80 mm
Length of cut pipes (standard): 1000 mm
Length of cut pipes (optional): 2000 / 3000 mm
Number of axes driven by servo motors: 10
Date of publication: 21.11.2023
