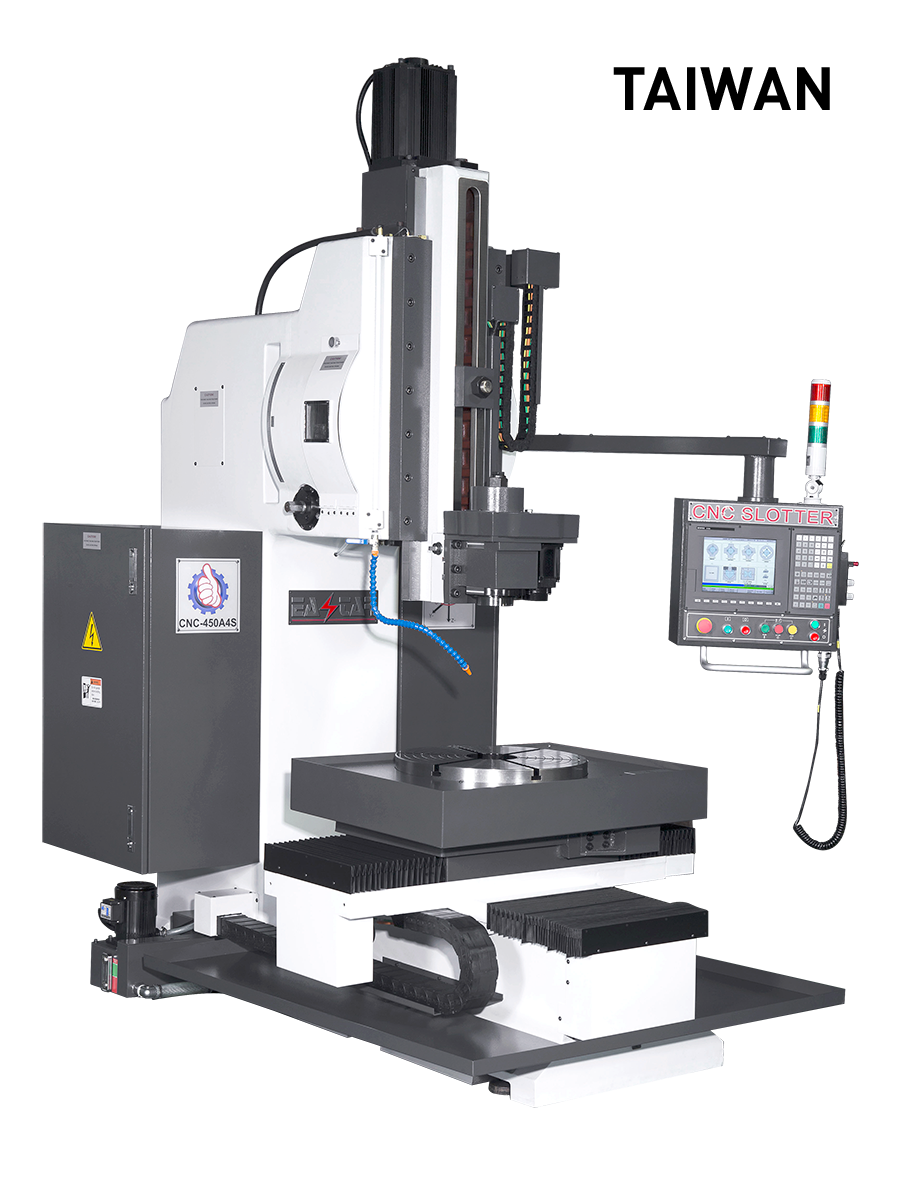

EUROMET DKS-450S CNC slotting machine
485 200,00 zł net
No rating
12 months of warranty
The EUROMET DKS-450S CNC slotting machine is a Taiwanese machine. The machine body is made of high-quality cast iron, all guides are made of hardened steel. The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms
Quantity
Add to cart
- Taiwanese production machine
- The machine body is made of high-quality cast iron, all guides are made of hardened steel
- The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool
- The chiselling head tilts ± 30 °
- The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms
Standard equipment:
- Ball screws class C3 in axes X, Y, Z
- Y-axis sliding guide guards
- Covers securing ball screws in X and Z axis
- Rotary table
- Cooling system
- Centralized automatic lubrication system
- Electric box heat exchanger
- Portable MPG handwheel
- Workspace lighting
- Warning lighting
- Basic set of maintenance tools
- CE declaration of conformity
- Manual in English
Optional equipment (additionally payable):
- 25kVA transformer (except 220V)
- 3-jaw chuck
- Magnetic chip conveyor
- Slotting bar
- Set for clamping the workpiece on the table
CNC control unit:
- SYNETEC (WIN-CE) CNC control system, high compatibility and good stability
- The controller can be combined with an automatic robot (option)
- The controller has a network connection and a USB input
- Diagnostic functions, modified electrical system, easy to maintain
| Technical data | Unit | Value |
|---|---|---|
| Slotting length (ram stroke) | [mm] | 10 - 485 |
| Vertical positioning of the beam | [mm] | 780 |
| Beam inclination angle | [°] | 30 |
| The distance between the base of the beam and the surface of the worktable | [mm] | 615 |
| Distance between the axis of the tool and the surface of the column | [mm] | 795 |
| Working table diameter | [mm] | 560 |
| Longitudinal travel of the working table (X) | [mm] | 500 |
| Transverse travel of the working table (Y) | [mm] | 710 |
| X axis servo motor | [kW] | 1,8 |
| Y axis servo motor | [kW] | 1,8 |
| C axis servo motor | [kW] | 2,0 |
| Z axis servo motor | [kW] | 11 |
| The distance of the work table to the floor | [mm] | 815 |
| Tool holder | [-] | BT50 |
| Work table height | [mm] | 184 |
| Coolant pump motor power | [kW] | 0,25 |
| Device dimensions | [mm] | 2320x1400x3130 |
| Weight | [kg] | 3150 |
