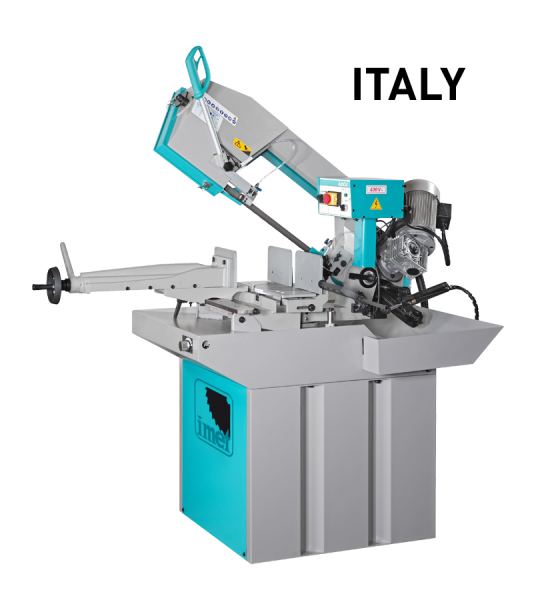

Manual band saw IMET GBS 242 GH Auto Cut enabling cutting at an angle - arm torsion to the right and left - and hydraulic feed. The machine is equipped with a manual vice with quick clamping, manual lifting of the arm, cooling system, two cutting speeds and smoothly adjustable feed. Cutting tool - bimetallic strip, height 27 mm, is precisely guided in cubes made of sintered carbides.

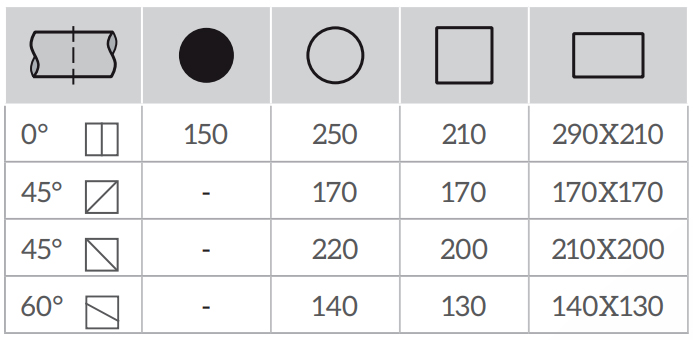

CUTTING ANGLE |
|
|
|
0° |
250 |
290x210 |
210 |
45° P |
220 |
210x200 |
200 |
60° P |
140 |
140x130 |
130 |
45° L |
170 |
170x170 |
170 |
0 ° for solid material (C45) |
150 |
|
|
Technical data | Unit | Value |
---|---|---|
The width of the cutting band | [mm] | 27 |
Vise opening width | [mm] | 290 |
The dimensions of the cutting band | [mm] | 2965×27×0,9 |
Cutting band speed | [m/min] | 35/70 |
Cutting band motor power | [kW] | 1.1/1.3 |
Working height | [mm] | 940 |
Dimensions | [mm] | 1500x1250x1700 |
Weight | [kg] | 290 |
