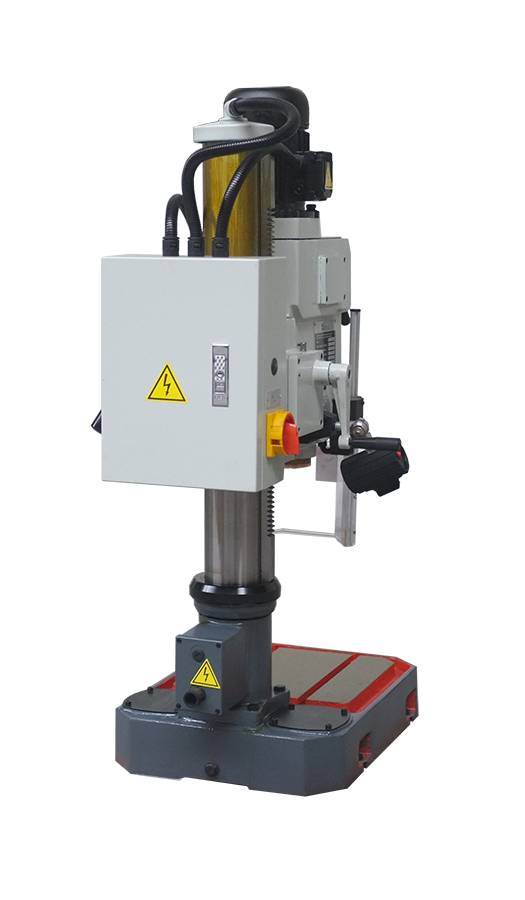

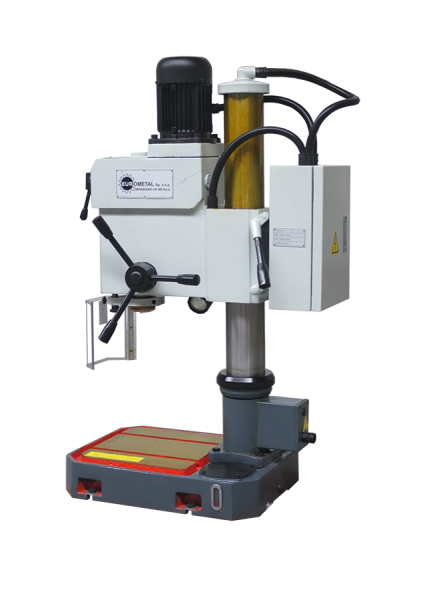

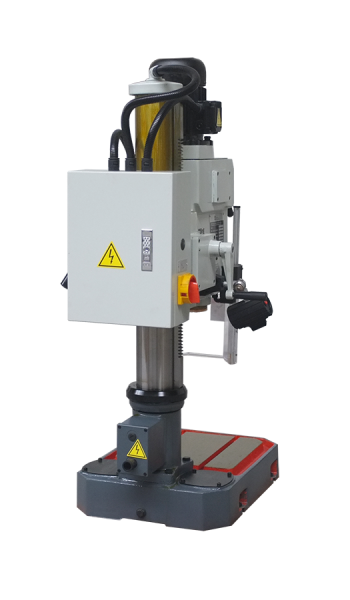

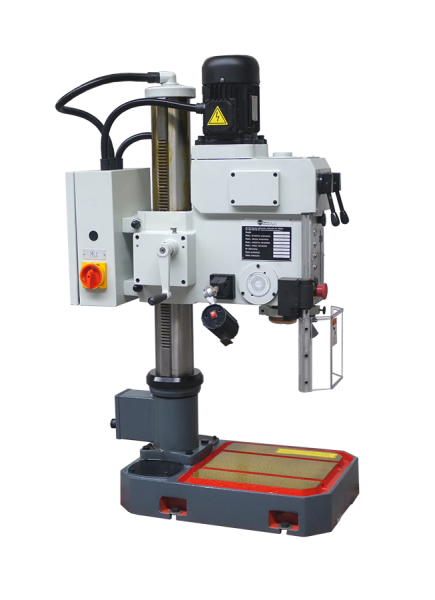

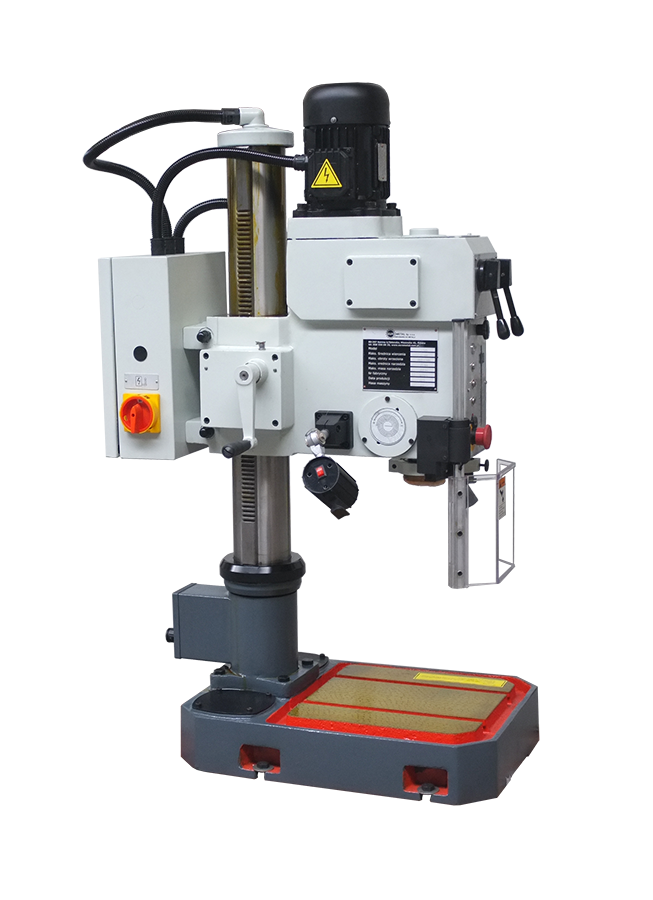

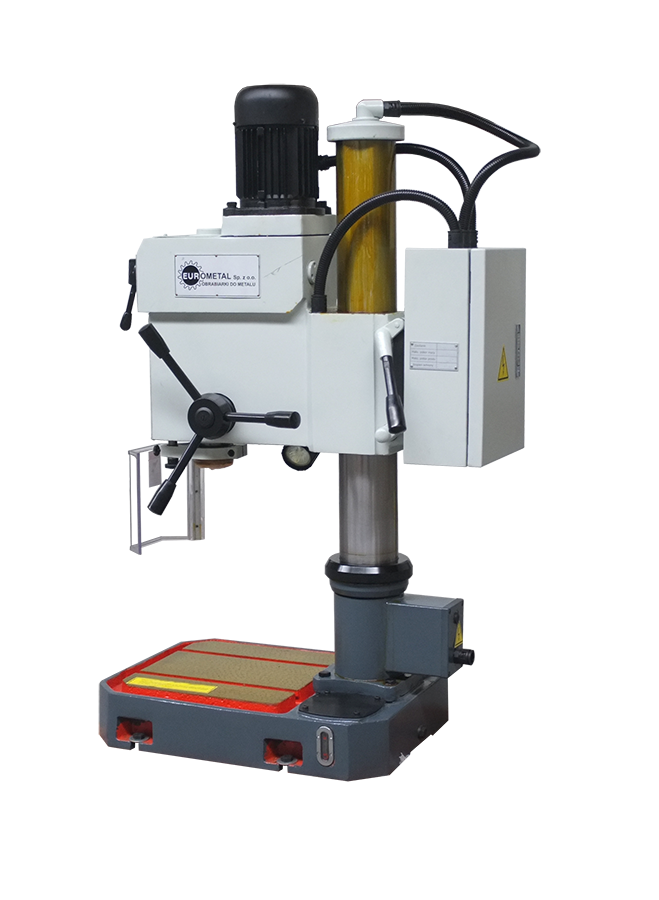

The universal EUROMET WS25 table drill can be used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation. The drill has the ability to change the spindle speed through the gearbox, which has a significant impact on the comfort of work.

Quantity
Add to cart

The universal EUROMET WS25 table drill can be used in production plants or workshops. The drill is characterized by compact mechanisms and easy operation.
It is designed to perform the following operations:
  • drilling
  • reaming
  • drilling
  • rough boring
  • threading in automatic mode
The main advantage of the WS25 pillar drill is a proven, rigid structure that enables high-quality processing. The drill has the ability to change the spindle speed through the gearbox, which has a significant impact on the comfort of work. The practically maintenance-free (grease-lubricated) spindle speed gearbox enables quick and convenient adjustment of the spindle speed to the current needs. In addition, the drilling depth limiter allows you to obtain repeatable holes in small-lot production.
The main features of the device:
  • grease lubrication
  • lighting
  • speed change by gears
  • wide range of spindle speeds
  • headstock adjustable on the pole
  • mechanical drilling depth limiter
  • base with T-slots

Standard equipment:
  • lighting of the workspace
  • drill guard
  • threading
  • drilling depth limiter
  • base with T-slots
  • machine manual in English
  • CE declaration of conformity
Optional equipment (additionally payable):
  • base-cupboard
  • cross table
  • rotary table
  • machine vice
  • laser drilling point indicator

Technical data Unit Value
Drilling diameter in steel [mm] 25
Tapping diameter in cast iron / cast iron [-] M18
Extend the spindle sleeve [mm] 110
Distance between the spindle and the column [mm] 240
Distance from spindle to base [mm] 650
Spindle taper [-] No. 3
Number of spindle speed ranges [-] 6
Spindle rotation [rpm/min] 125 - 2825
Dimensions of the working table [mm] 335×340
Engine power [kW] 0,75
Dimensions [mm] 700x460x1425
Device weight [kg] 270
