Section bending machines

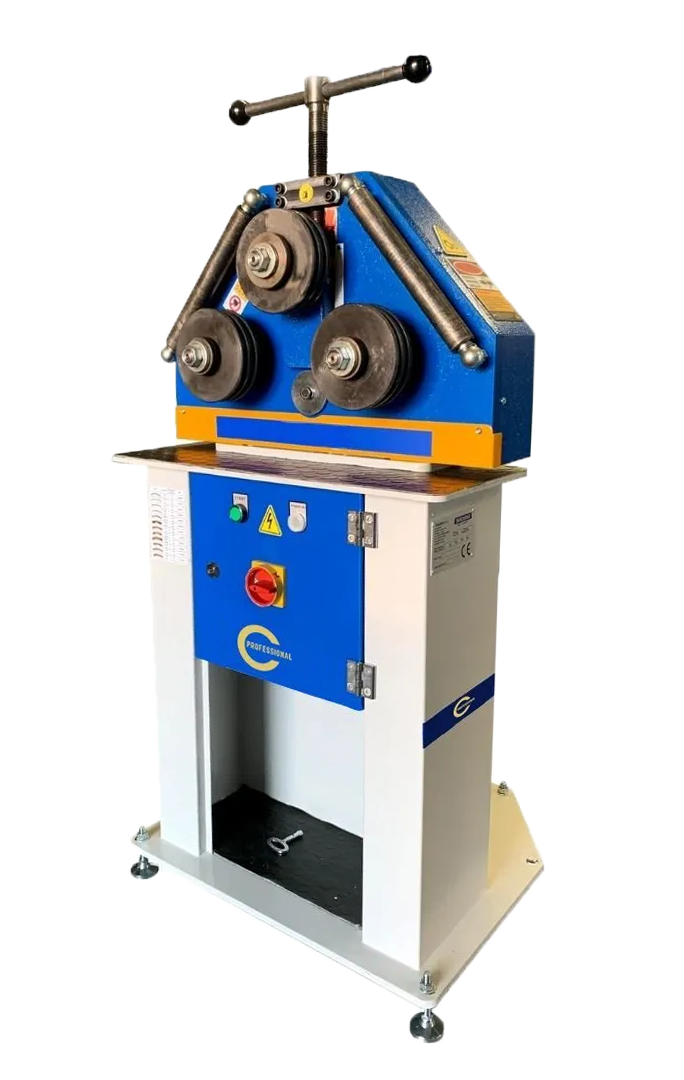

MACKMA RB30M profile rolling machine

19 565,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

MACKMA RB30M profile rolling machine with two driven rollers, enabling bending and rolling of arcs with large radii of pipes and profiles, suitable for all types of workshops. The upper roller is manually adjusted, which makes operating the machine very easy.

Quantity
Add to cart

MACKMA RB30M profile rolling machine with two driven rollers, enabling bending and rolling of arcs with large radii of pipes and profiles, suitable for all types of workshops. The upper roller is manually adjusted, which makes operating the machine very easy.
These devices are used largely in the production of balustrades, handrails, in the production of halls, roofs and cabins of industrial machines. In the simplest models, the pressure of the bending roller is performed manually. In advanced models, the entire bending process takes place automatically - the machines can be equipped with, among others, in NC control. Possibility to equip the machine with digital reading of the roller position.

Standard equipment:
  • 2 driven rollers
  • Hardened rollers
  • Work vertically and horizontally
  • Standard roller set
  • Machine instruction manual in English
  • CE Declaration of Conformity

Optional equipment (additionally paid):
  • Additional sets of special rollers
  • Rollers made of soft material
  • A device for twisting a rod
  • Digital reading

Technical data Unit Value
Roller shaft diameter [mm] 30
Lower rollers diameter [mm] 118
Top roller diameter [mm] 148
Working speed [m/min] 4
Engine power [kW] 0,75
Dimensions LxWxH [mm] 600 x 800 x 1450
Weight [kg] 220
